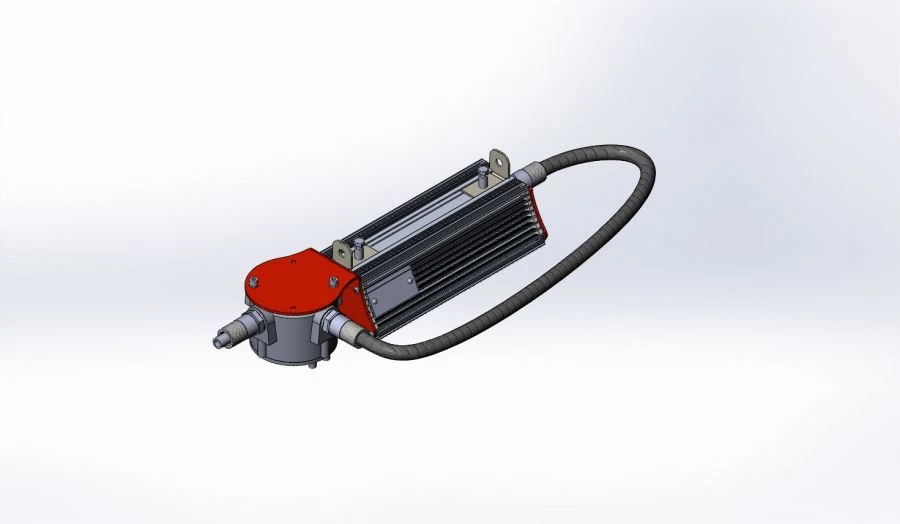

LED explosion-proof luminaire with terminal box Sakhalin 16.5420.29 Ex T5 (type KSS D) with suspension mounting

LED Spotlights and Luminaires

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

LED explosion-proof luminaire with terminal box Sakhalin 32.10850.58 Ex T5 (type KSS D) with suspension mounting

Description

Designed for stationary installation for illumination of explosive industrial premises and outdoor installations.

Field of application:
- explosive areas of classes 1 or 2 when a gas mixture is likely to be present, categories IIA, IIB, IIC;
- hazardous areas of classes 21 and 22 with probable presence of combustible dust, category IIIC.

Group II electrical equipment is used for gas environments, Group III for dust environments (except mines).
Available modifications by degree of protection: IP66 with terminal box, IP67 without terminal box.

Specifications

IK code 9

ELECTRICAL SAFETY CLASS. 1

Lower operating temperature value 45 °C

Protection class against electric current I

Pulsation factor 1 %

Power consumption, W 29 W

Gross weight 3.9 kg

Upper operating temperature value 40 °C

Luminous flux 5420 lm

Type of luminaire Stationary

Light distribution class n - direct light; type kss e - cosine

Operating temperature range 40...45 °C

Color rendering index (Ra) 75

Power factor 0.97

Type of supply current Variable

Rated supply voltage 230 V

Color temperature 5000 K

Height 65 mm

Width 118 mm

Length 297 mm

Climatic version ?2

Housing material aluminum profile with cooling fins; anodized finish

Type by installation location Suspended

Model sakhalin t5 with terminal box (with kk)

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
