Available for Import

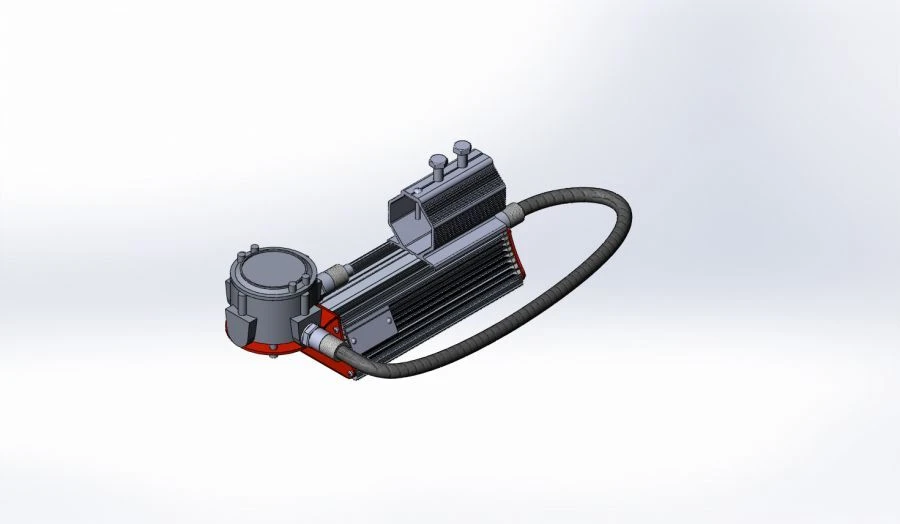

LED explosion-proof luminaire with terminal box Sakhalin 16.3340.15 Ex T6 (type KSS D), cantilever mounting

LED Spotlights and Luminaires

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

LED explosion-proof luminaire with terminal box Sakhalin 32.10850.58 Ex T5 (type KSS Sh), cantilever mounting LED explosion-proof luminaire with terminal box Sakhalin 16.5420.29 Ex T5 (type KSS Sh), cantilever mounting Explosion-proof LED luminaire with terminal box Sakhalin 40.13650.73 Ex T5 (type KSS G), cantilever mounting Explosion-proof LED luminaire with terminal box Sakhalin 48.16270.87 Ex T5 (type KSS G), cantilever mounting LED explosion-proof luminaire with terminal box Sakhalin 32.9820.50 Ex T6 (type KSS D), cantilever mounting

Explosion-proof LED luminaire with terminal box Sakhalin 24.5000.22 Ex T6 (type KSS G), cantilever mounting LED explosion-proof luminaire with terminal box Sakhalin 48.16270.87 Ex T5 (type KSS Sh), cantilever mounting LED explosion-proof luminaire with terminal box Sakhalin 16.3340.15 Ex T6 (type KSS G), cantilever mounting LED explosion-proof luminaire with terminal box Sakhalin 24.5000.22 Ex T6 (type KSS D), cantilever mounting Explosion-proof LED luminaire with terminal box Sakhalin 32.9820.50 Ex T6 (type KSS G), cantilever mounting LED explosion-proof luminaire with terminal box Sakhalin 48.14740.75 Ex T6 (type KSS D), cantilever mounting LED explosion-proof luminaire with terminal box Sakhalin 40.13650.73 Ex T5 (type KSS Sh), cantilever mounting LED explosion-proof luminaire with terminal box Sakhalin 24.8230.44 Ex T5 (type KSS Sh), cantilever mounting LED explosion-proof luminaire with terminal box Sakhalin 48.14740.75 Ex T6 (type KSS G), cantilever mounting

Description

Designed for stationary installation for illumination of explosive industrial premises and outdoor installations.

Field of application:
- explosive areas of classes 1 or 2 when a gas mixture is likely to be present, categories IIA, IIB, IIC;
- hazardous areas of classes 21 and 22 with probable presence of combustible dust, category IIIC.

Group II electrical equipment is used for gas environments, Group III for dust environments (except mines).
Available modifications by degree of protection: IP66 with terminal box, IP67 without terminal box.

Specifications

ELECTRICAL SAFETY CLASS. 1

Protection class against electric current I

Pulsation factor 1 %

Power consumption, W 15 W

Light distribution class ?

Light distribution class n; type kss e

Operating temperature range 40...45 °C

IK code 8

Color rendering index (Ra) 75

Power factor 0.97

Type of supply current Variable

Rated supply voltage 230 V

Color temperature 5000 K

Luminous flux 3340 lm

Spotlight type Linear

Scattering Wide

Type of light distribution of the spotlight circular

Type of spotlight Stationary

Protection class of the luminaire ip67

Housing material anodized aluminum profile

Availability of motion sensor no

Availability of solar panel no

Assignment long-range

Radiation color white

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
