Launching device for SCM 10-3.5R LH duty boats

Special Purpose Equipment

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Launching device for duty boats SCM 10-3.5R RH

Description

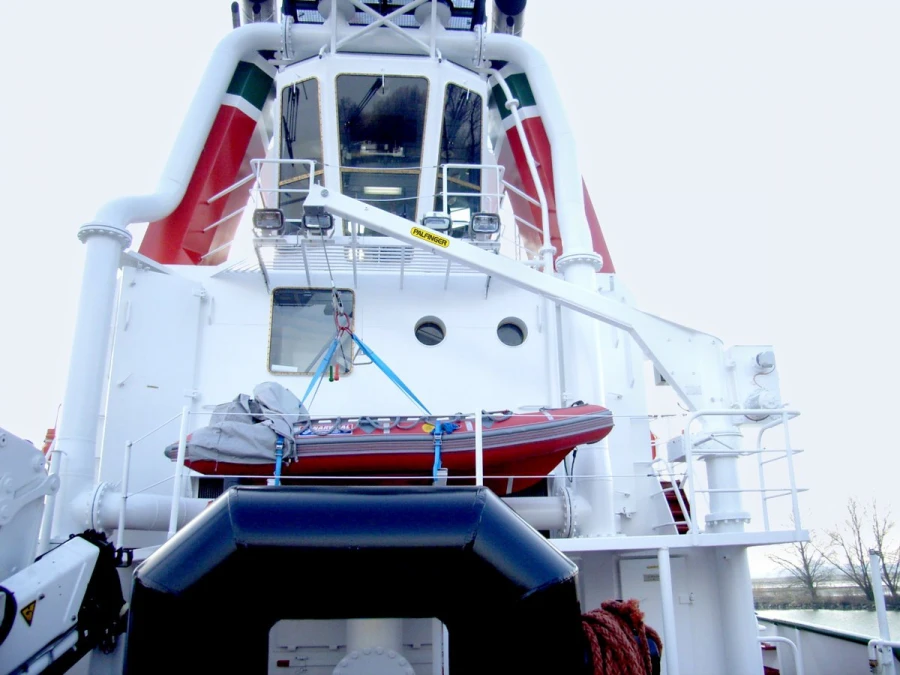

The launching device is designed to provide mechanisation of launching-lifting of the duty boat with the crew on board on ships, vessels and other floating structures. Structurally it is a crane-beam with a rigid boom, winch and manual drive for turning. Suitable for operation at differential of the carrier vessel up to 10 degrees and its roll up to 20 degrees to either side. The dinghy can be launched by gravity and hoisted by electric winch. Safe working load for operation: 10 kN. The launching device fully complies with IMO/SOLAS requirements, the LSA code and the European Marine Equipment Council (MED) Directive 96/98. Supplied with RMRS certificate.

Specifications

Voltage

380 V

Weight, not more

1200 kg

Lowering height

28 m

Working radius

3500 mm

Safe working load

10000

Motor power

7 kW
