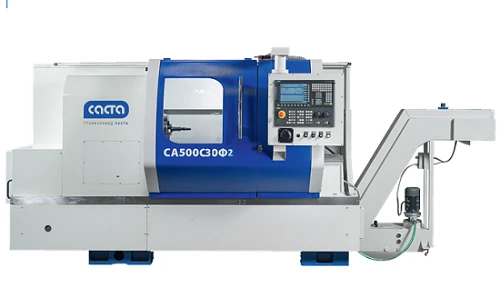

Lathe with LSU CA500C30F2

CNC Metal Lathes

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

- Maximum balanced machine with very robust construction.
- The possibility of upgrading the operational control system (OCS) to a full Fanuc CNC system without additional installation work, by entering the service code.
- Rigid cast iron bed, artificially aged to relieve internal stresses, ensures long term stability of the machine's geometric accuracy.
- Wide prismatic and flat slideways, hardened to a depth of 1.5-2 mm to a hardness of 52HRC and ground, are highly wear-resistant.
- The surfaces of the travelling units (carriage, tailstock) are scraped and coated with a special anti-friction coating for minimum wear and friction-free travelling.
- All-metal spindle is assembled on high-precision angular-contact bearings (one twin in front and one in the rear), has reduced runout in axial and radial direction even under heavy cutting conditions.
- Modern operational control system based on Fanuc 0i

Technical Specifications

Type of product according to PP RF 616	Turning and screw-cutting machines (universal, with CNC, CNC)
Length	5377 mm
Height	2170 mm
Weight	3700 kg
Width (without remote control)	1620 mm
Width (with remote control)	2220 mm
The largest diameter of the workpiece, to be mounted above the bed	500 mm
The largest diameter of the workpiece, to be machined above the slide	290 mm
Movement in the X axis (transverse movement of the slide)	278 mm
Z-axis travel (longitudinal movement of the slide)	2446 mm
Maximum speed spindle speed	3500
Maximum spindle torque	688/848
Main engine power	15/18.5 kW
Speed control	Stepless, 2 ranges
Diameter of the spindle bore for the bar	55 mm
Spindle end	?6
Attachment of the turret tool	VDI40
Number of tool slots	8 (4* optional)
Moving the tailstock quill	200 mm
Diameter of tailstock quill	100 mm
Tailstock quill taper	Morse 5

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
