Available for Import

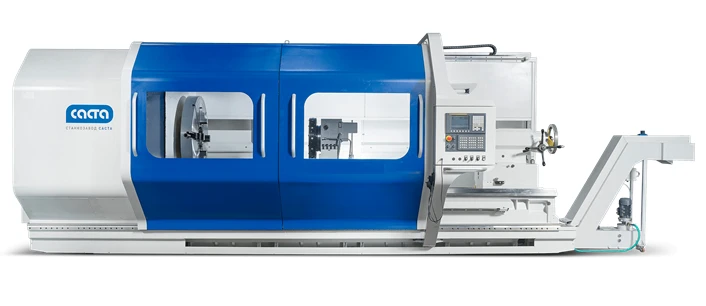

CNC lathe model CA1250C140F4
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
- The range of spindle speed control allows machining of products both from ordinary ferrous and non-ferrous metals and from alloy steels
- The one-piece grey cast iron bed and the wide prismatic and flat slideways guarantee static and dynamic rigidity for a long service life.
- For machine tools with a machine centre diameter of more than 5 m, the bed is made of several solid cast sections.
- Inside the bed there are large sloping openings to facilitate chip slippage and minimise thermal effects.
- The high (up to 6675 Nm) torque at the spindle allows heavy duty machining.
Technical Specifications
| Type of product according to PP RF 616 | Turning and screw-cutting machines (universal, with CNC, CNC) |
|---|---|
| Machine weight, not more | 27500 kg |
| Length | 18183 mm |
| Width | 2329 mm |
| Height | 2200 mm |
| Width without remote control/ with remote control | 3059 mm |
| Largest diameter of the workpiece to be mounted above the bed | 1265 mm |
| Largest diameter of the workpiece to be machined above the slide | 660 mm |
| Maximum mass of the part to be installed | 8000 kg |
| X-axis travel (transverse movement of the slide) | 625 mm |
| Z-axis travel (longitudinal movement of the slide) | 13920 mm |
| C-axis travel (spindle rotation) | ±360 deg. |
| Maximum spindle speed | 750 |
| Maximum torque post./ 30 min. | Fanuc: 4980/6225 NmSiemens: 5340/6675 Nm |
| Main engine power | Fanuc: 30/37.5 kWSiemens: 28/35 kW |
| Spindle end | ?15 |
| Chuck diameter | 1000 mm (500, 630, 800 * optional) |
| Chuck type | Mechanical (hydraulic* optional) |
| Spindle bore diameter | 180 mm |
| Attachment of the turret tool | VDI50 |
| Number of tool slots | B1/B8 2100/900 MHz pc |
| Maximum rotational speed of the drive tool | 4000 |
| drive tool power | 7.5 kW |
| Moving the tailstock quill | 275 mm |
| Diameter of tailstock quill | 180 mm |
| Tailstock quill taper | Morse 6 |
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
