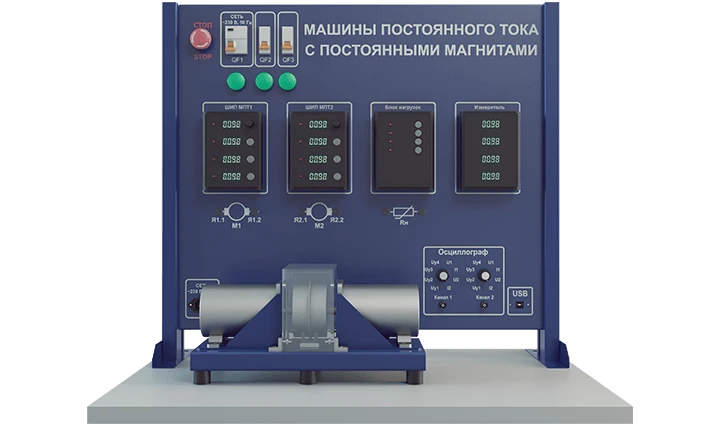

Laboratory installation for the study of DC machines with permanent magnets (EE-MPTPM)

Study of operating characteristics and control methods of permanent magnet excited DC motor (DCT). Study of permanent magnet excited dc generator with permanent magnet excitation. Study of the operation of the SHIP for motor control. The list of works to be carried out on the training stand: - Determination of the moment of inertia and flywheel moment of the electric drive by the method of free run-out. Experimental determination of the dependence of the idle running torque of the MPT on the rotation speed - Study of mechanical and electromechanical characteristics of the DC motor in the motor mode. Construction of DPT operating characteristics - Regulation of speed and change of direction of rotation of DPT in motor mode at anchor control - Investigation of braking modes of DPT - Investigation of DC generator characteristics. Construction of regulating characteristics of generator - Investigation of digital reversible pulse width converter for control of DPT
