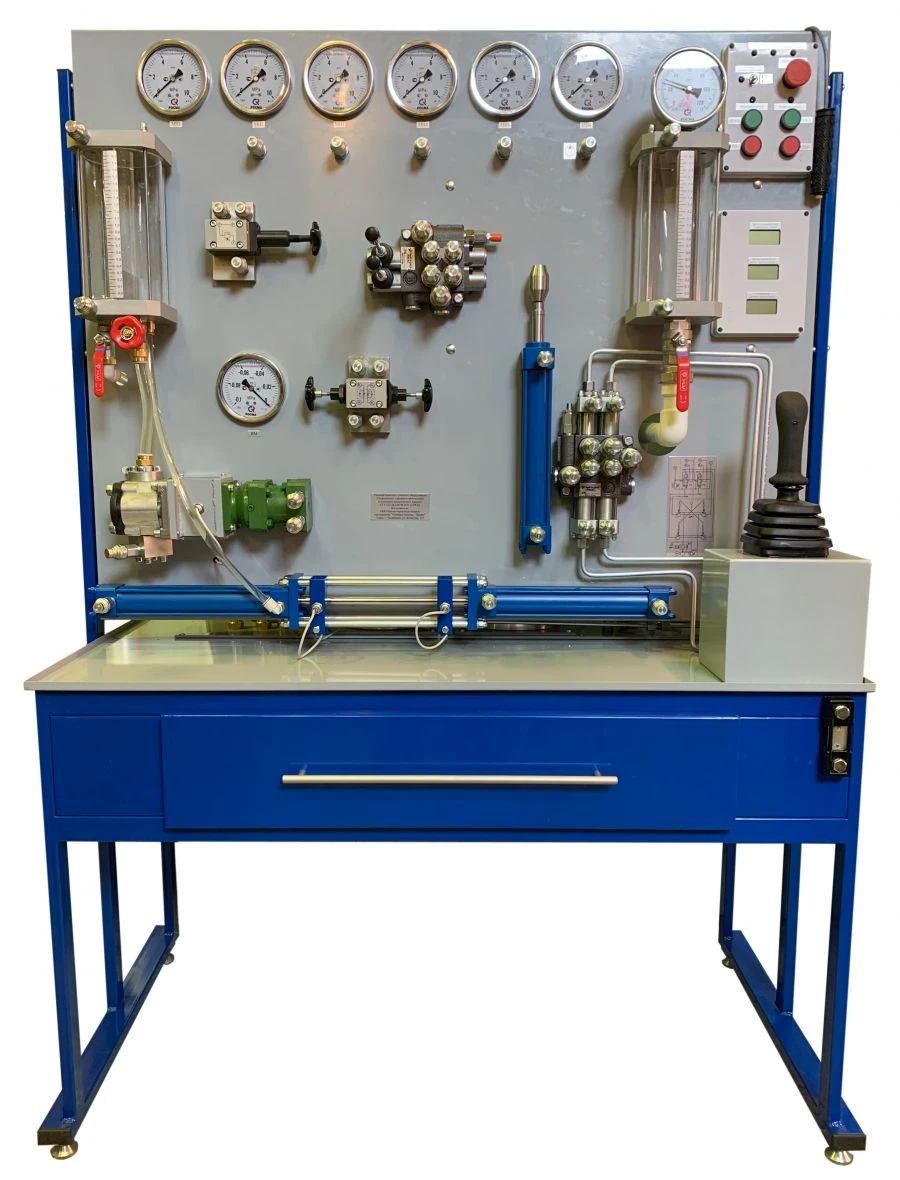

Laboratory complex "Hydraulic drive of road-building and lifting-transport machines" SGU-GP-DSiPTM-010-12LR-01

Professional Training Simulators

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Laboratory complex "Hydraulic drive of road-building and lifting-transport machines" SGU-GP-DSiPTM-010-12LR-01 contains a hydraulic stand with methodical materials and is designed to conduct 12 laboratory works on the courses of study of hydraulic drives. Simultaneously the works are carried out with the group of 2,3 persons.
The stand contains two electric motors, three hydraulic pumps, one hydraulic motor, three hydraulic cylinders, guiding and regulating equipment
The bench allows to determine energy, load and regulation characteristics of hydraulic drives. It is possible to change loads on output links - hydraulic cylinder rod, hydraulic motor shaft.
The information-measuring system allows to determine pressures in different points of the system, costs (volumetrically), speeds of output links (in translational and rotational motion), time, temperature of working fluid, power at different points of the system.

Technical Specifications

Overall dimensions	1250x650x1750 mm
Warranty period	B1/B8 2100/900 MHz
Material	Steel
Assignment	designed for studying hydraulic drives, allows to determine the energy, load and adjustment characteristics of hydraulic drives, provides the possibility of changing the loads on the output links - the hydraulic cylinder rod, the hydraulic motor shaft
Power consumption	18 kW
Composition	- hydraulic bench; - set of tees (2 pcs.) and crosses (2 pcs.) with quick couplings for circuit assembly; - set of high-pressure hoses (12 pcs.) with quick couplings for circuit assembly; - working fluid in the amount of 30 litres; - a set of high-pressure
List of laboratory works to be performed	1. экспериментальное исследование кавитационных и рабочих характеристик шестеренного насоса при различных частотах вращения вала насоса; 2. экспериментальное исследование характеристик предохранительного клапана; 3. экспериментальное исследование характер

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
