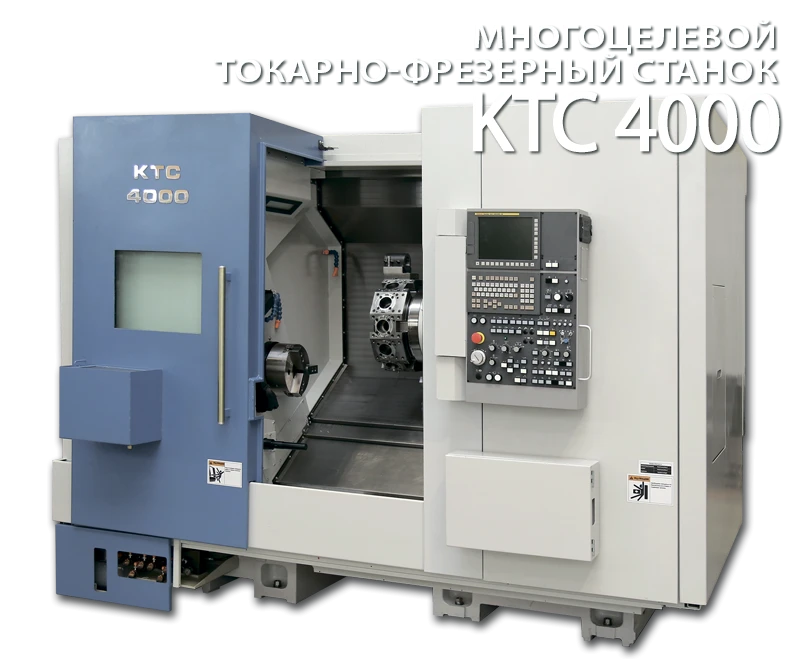

Lathe-milling machining centre KTS 4000 and its modifications.

Tokarno-milling machining centre "KTS" model and its modifications is designed for turning, boring, drilling, thread cutting, gear cutting, chiselling, chiselling and milling works, as well as precise machining of complex workpieces (drive tool power from 3.7 to 7.5 kW) on workpieces of various materials weighing up to 500 kg, length from 480 to 1300 mm and maximum machining diameter from 215 to 500 mm using turning and axial tools. Main spindle power up to 22 kW. Auxiliary spindle power up to 15 kW.

Stroke in X= from 180 to 325 mm, Y= from 80 (±40) to 120 (-50...+70) mm (can be produced without Y axis), Z= from 530 to 1470 mm, A (counterspindle movement optional)= from 500 to 1480 mm.

• * - It is possible to change the parameters according to the customer's technical task. .

.
