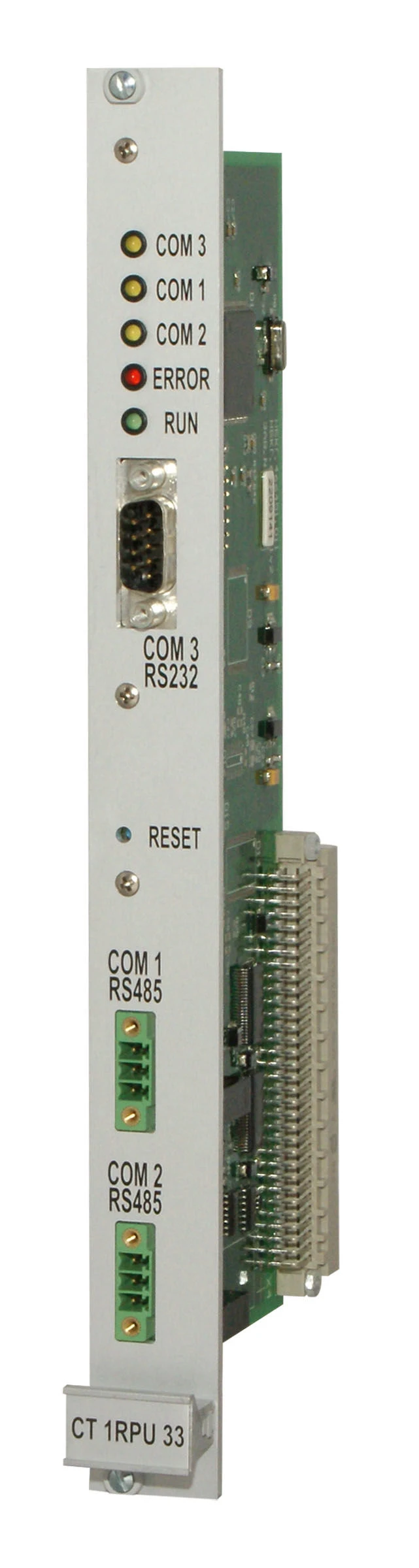

KSA-02 controller. Module CT1RPU33

Controllers KSA-02, are designed to collect and process analogue and discrete signals from sensors and alarms, to issue control actions according to specified algorithms to actuators as part of local/distributed process control systems. The CT1RPU33 processor module is designed for use as part of remote I/O stations of KSA-02 controllers. The CT1RPU33 module is implemented on two processors - main and I/O. The main processor serves modules within the remote I/O station via the system bus, as well as external devices via two RS-485 interfaces. The I/O processor supports the exchange protocols via the RS-232 service interface. On the service interface is connected to a PC with the installed design system Scorpio5
