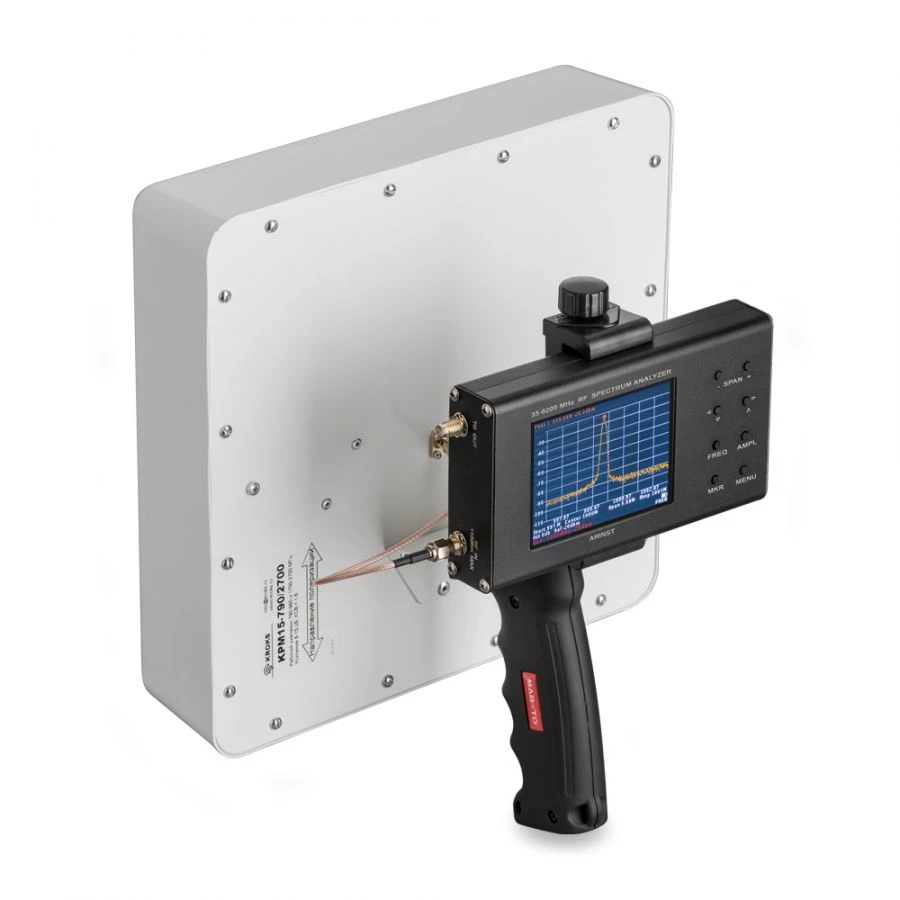

KPM15-790/2700 Directional Passive Measuring Antenna for RF Measurements

Antenna Equipment & Parts

Manufacturer: KROKS PLUS LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Directed passive panel measuring antenna KRM15-790/2700 with gain up to 15 dB. Designed for radio frequency measurements (field strength measurements and amplitude direction finding of electromagnetic radiation sources) in the frequency ranges 790-960 MHz and 1700-2700 MHz. The wide operating range of the antenna allows measuring the signal level of all common technologies and standards.

The antenna has a regulated gain in the operating frequency range. It is recommended for the study of electromagnetic environment in a set with a spectrum analyser. The antenna is supplied with a pigtail for its connection to a spectrum analyser or other receiving device.

With the help of the measuring antenna it is possible to perform the following works: analyse the radio frequency environment; Aim the antenna at a base station; detect the source of signal or interference; analyse the operation parameters of amplifiers (repeaters).

Specifications

Polarization

Vertical

Connector

SMA-female

Weight

1.4 kg

Minimum value of the operating radio frequency range

790

Maximum value of the operating radio frequency range

960

Gain factor

8...15

Standing wave coefficient (VSWR)

1.6

Input impedance

SBVVBG ohm

Maximum permissible power

10 W

Maximum wind load

108

MIMO support

Received signals

WiFi 2400 LTE 800, LTE 900 LTE 1800 GSM 900 GSM 1800 UMTS 900 LTE 2600 UMTS 2100

Type of execution

Multi-band

Length

250

Width

250

Height

140

Mark

Kroks

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
