Delta N351A Combined Wideband Antenna Available for Import

Delta N351A Combined Wideband Antenna for Effective Signal Reception

Antenna Equipment & Parts
Manufacturer: CJSC NPP OST
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Available Models

Antenna wideband combined DELTA H351

Description

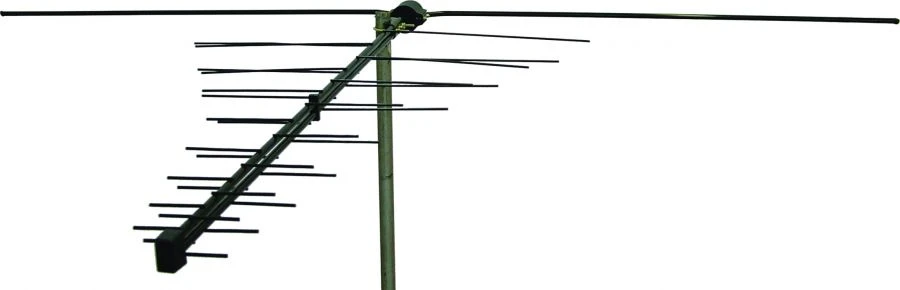

DELTA H351A combined antenna, which in a single structure combined two antennas: one - a range symmetrical vibrator of the metre wave range and the second - a broadband logoperiodic antenna of the decimetre wave range.

Electrical parts and fasteners are made of steel. Protective and decorative coating with thickness of 70-100 microns is provided by epoxy-polyester powder paints. Brackets and nuts of mast mounting, stud and earthing nut are zinc-coated.

Specifications

Type by orientation
Directed
View
television
Type
broadband
Internal antenna type
outdoor
Reinforcement type
Active
Type by received frequency range
broadband
Maximum value of the operating radio frequency range
790
Input impedance
75 ohm
Received signals
1-5/6-12/21-69
Gain factor
28
Maximum operating temperature
SBVVBG °C
Minimum operating temperature
-50 °C
Maximum wind load
15
Standing wave coefficient (VSWR)
2
Connector
F
Equipment
Antenna, power supply
Weight
2 kg
Power supply voltage
B1/B8 2100/900 MHz V
Mark
Delta

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
