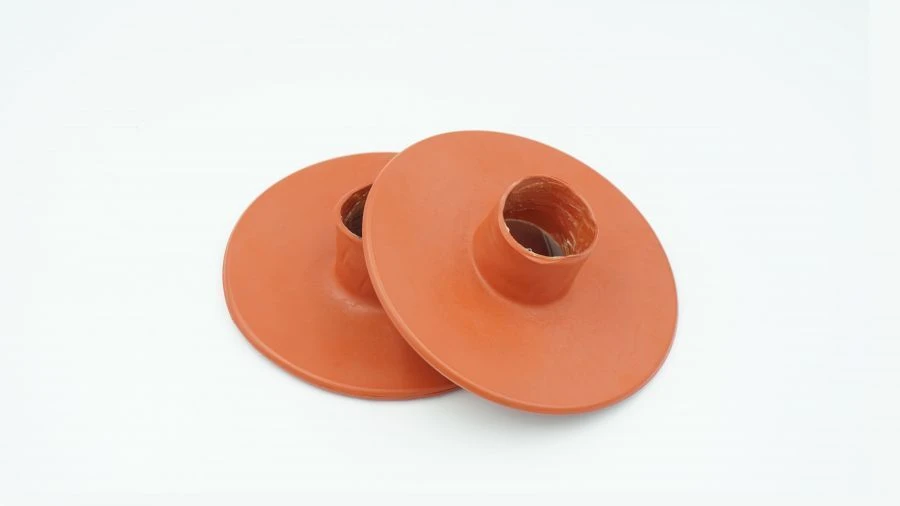

ITtr Heat Shrink Insulators for Electrical Equipment Applications

Plastic Electrical Insulation

Manufacturer:MEMOTHERM-MM OJSC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Ittr insulators with an adhesive layer are used in electrical equipment to support and separate electrical conductors without allowing current to flow through the shrinkage point and through the thickness of the insulator. Increases the length of the current leakage path. Provides dry zones on the surface of end couplings.

Does not support combustion. Resistant to ultraviolet light and other environmental influences. Used for outdoor installation of heat shrinkable terminations up to 35kV.

They provide electrical safety and cable protection.

Specifications

Size range. Neck height not less than

27 mm

Size range. ? "skirt" of the insulator not less than

120 mm

Dimension series. Insulator height not less than

35...70 mm

Type of product according to PP RF 616

Other plastic tubes, hoses and sleeves

Material

polyolefin based composition with anti-tracking additives

Shrinkage temperature

100...130 °C

Dielectric strength

Not less than 20 kV/mm kV

Mechanical tensile strength

at least 12 MPa

Operating temperature

-55...105 °C

Size range, ? before shrinkage

35...50 mm

Size range, ? after shrinkage

10...20 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
