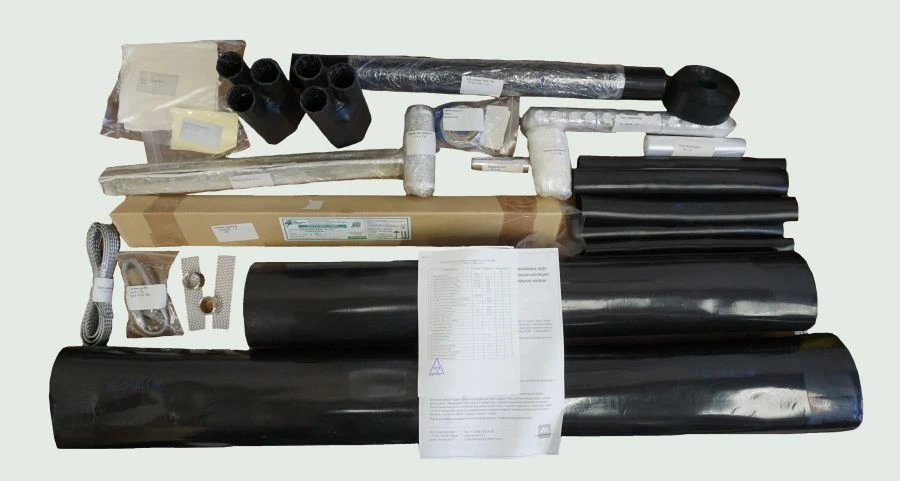

End and Connecting Insulated Cable Couplings KV(N)tp10 for Power Cable Applications

Plastic Electrical Insulation

Manufacturer: MEMOTHERM-MM OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

End couplings KV (H)tp1

Description

Ending and connecting couplings KV(H)tp10, with paper oil-impregnated insulation are designed for termination and connection of power cables with paper impregnated
with cores with cross-section from 25 to 240 mm2 inclusive for rated alternating voltage of 10 kV with frequency 50 Hz in networks with insulated or earthed neutral.
Types of cables to be installed:
AASHv(p), ASBG, ASB2l, AABl, AAB2l, ASBl, AABl, AAB2l, ASShv, SBl, SB2l, SP, SPG, SShv, SBShv, SBShv, SPShv, AABlG, AAB2l-Shv(p), AAPl, AAP2l, AAP2lG, AAP2lShv, AAP2lShv, ASShv, ASB2lShv and similar.

Specifications

Climatic version of couplings

UHL

Operating temperature

-50...50 °C

Compliance

TOU 27.33.13-01 17938667-2019, STO 00081866-001-2009.

Voltage

10 kW

Oil pressure tightness

200 (2kgf/cm2)

Service life

At least 30 years year

Cable voltages

10 kW

Number of conductive cores, pairs in the cable

1.3...5

Type of product according to PP RF 616

Other plastic tubes, hoses and sleeves
