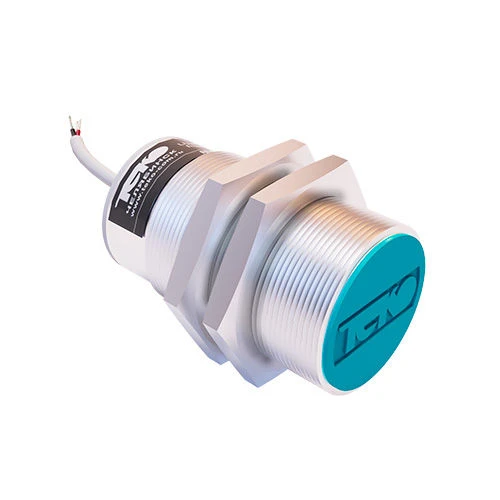

ISB A8A8-31N-10G-LZT2-C-P Inductive Proximity Switch for Industrial Automation

Measurement and Control Devices

Manufacturer: TEKO OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The contactless inductive switch (sensor) ISB A8A8-31N-10G-LZT2-C-P is designed for contactless switching of actuators in industrial automated devices, lines, machines and systems. When approaching to the sensitive surface of ISB A8A8-31N-10G-LZT2-C-P object of influence from any metal there is a damping of the electromagnetic field and a decrease in the amplitude of oscillations of the generator, triggers a threshold device (trigger) and switches the electronic key of the sensor, which performs switching of electrical circuits.

Specifications

Wiring diagram

3-wire

Special purpose

Road transport version

With special electrical parameters

Increased noise immunity

Working clearance

0...8 mm

Operating temperature range

-45...65 °C

Supply voltage ripple factor

Less than or equal to 67%

Degree of protection according to GOST 14254-96

IP68

Comprehensive protection

Got it

Light indication

Got it

Connection / Connection

Cable 3x1 kv. mm

Switching frequency, Fmax

300

Voltage drop at Imax, Ud

Less than or equal to 2.5 V

Operating voltage range, Urab.

10...30 V

Maximum operating current, Imax

0.5 A

Case

Diameter 27 to 50 mm

Housing type

Cylindrical threaded

Length

54 mm

Diameter of threaded body

M30

Housing material

D16T

Connection method

Cable

Nominal sensing distance

10 mm

Mounting type

Built-in

Enclosure size, DxWxDl

M30x1,5x54

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
