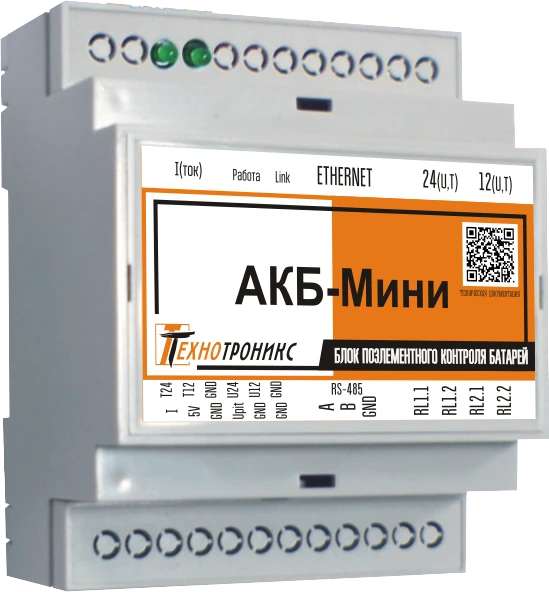

Programmable Controller AKB-Mini for Ethernet Communication Applications

Controller AKB-Mini (hereinafter - the product) is designed for operation in the Ethernet 10 Mbit data transmission network. The product operates from a constant voltage source of 1030 V. The product is equipped with ports, which are configured for different functions: measurement input of DC voltage 24V (power supply) and 12V, current, temperature on 12V and 24V batteries.

The product is also equipped with a 5V low-current power output. There is RS-485 interface for data transmission via Modbus RTU protocol. There are two outputs of "optorele" type.

There is a built-in temperature sensor.The product is equipped with a web-interface for setting all operating parameters, monitoring the current state of inputs/outputs, as well as changing the state of control outputs. The product can be used with software via standard protocol SNMP v1, v2c, modbus.
