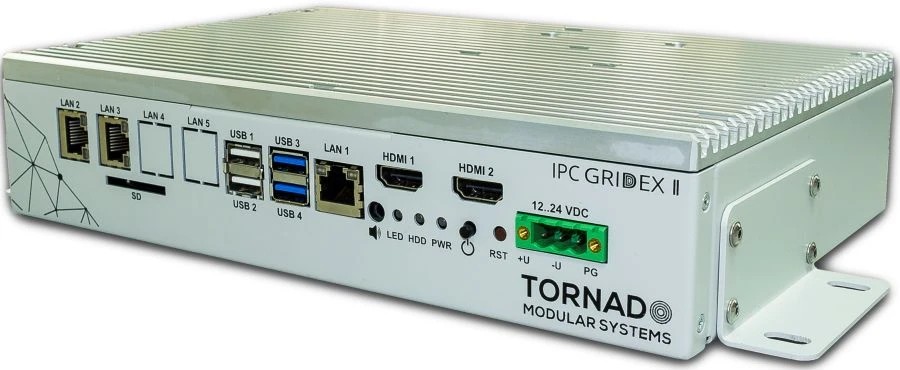

IPC Gridex II control device

Automatic Control Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

IPC Gridex II control devices are designed for various applications with "harsh" conditions and long service life, including the creation of automated process control systems (APCS) in various industries, as processor devices for the construction of automatic and automated monitoring and control systems, communication systems, emergency control and protection systems, etc. IPC Gridex II control devices have passive cooling, high reliability characteristics, have a long service life in harsh environmental and electromagnetic conditions, in a wide temperature range.

Specifications

Type SOM (System On Module) COM-Express Compact Type 6

Processor type Intel Core i3/i5/i7/Atom/Celeron, Elbrus and others with PCI-express support

RAM capacity Up to 32G DDR3/4

Supported operating systems Astra Linux, *Linux, Windows /7/8/10/11, Windows Embedded 7/8/10, QNX6

Number of HDMI ports 2 pc

Number of Ethernet 100/1000 interfaces, up to 5 pc

Form factor of Ethernet 100/1000 interfaces, pcs. Up to 5 RJ-45 or 1 RJ-45 and up to 4 SFP"

Number of RS-232/RS-422/RS-485/GPIO interfaces, up to 6 pc

Number of USB 2.0/3.0 ports, pcs. 4 on front panel, 1 inside housing

Number of SATA ports 2 pc

SD card port Armoured glass

Built-in Watch-Dog Armoured glass

Status indication Armoured glass

Ambient temperature (use Base) 0...60 °C

Ambient temperature (esp. Standart) 0...70 °C

Ambient temperature (esp. Industrial) -20...70 °C

Ambient temperature (esp. Extended) -40...80 °C

Time of operating time to failure, not less 87600

Service life, at least 15 a

Power supply voltage from external source, V 24V DC; 220V AC/DC

Power consumption, max. Typical up to 25W, peak up to 40W

Mechanical design Rack mount (19" 1U version); panel mount (11" version)

Overall dimensions 252x163x56 mm (11" version); 483x163x44 mm (19" 1U version)

Weight, not more 3 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
