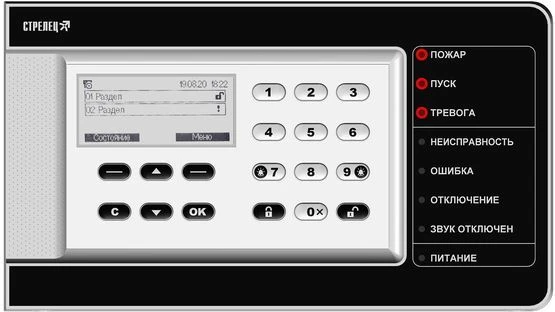

Integrated Security System Controller Panel-2-PRO Type L for Effective Security Management

Panel-2-PRO version L is a controller of a segment of the integrated security system "Strelets-Integral", provides connection to ISB, control and management of devices Strelets-PRO via radio channel interface. The operating frequency is in the range of 866-868 MHz (letter A), 864.0-865.0; 868.0-868.2 MHz; 868.7 - 869.2 MHz (letter C). The device has built-in outputs and provides the possibility of their automatic control according to the HIS logic: 3 pcs.

of "Open collector type with circuit control up to the load". Voltage on load - from 10 to 28 V Maximum current in load - not less than 0,15 A.; 1 piece of "Open collector" type. Voltage on load - up to 30 V DC or AC.

Outputs are protected against short circuit. Power supply of the device is made from an external source of 10-28 V. The mass of the device is not more than 0.58 kg.

The average service life of the device is not less than 10 years.
