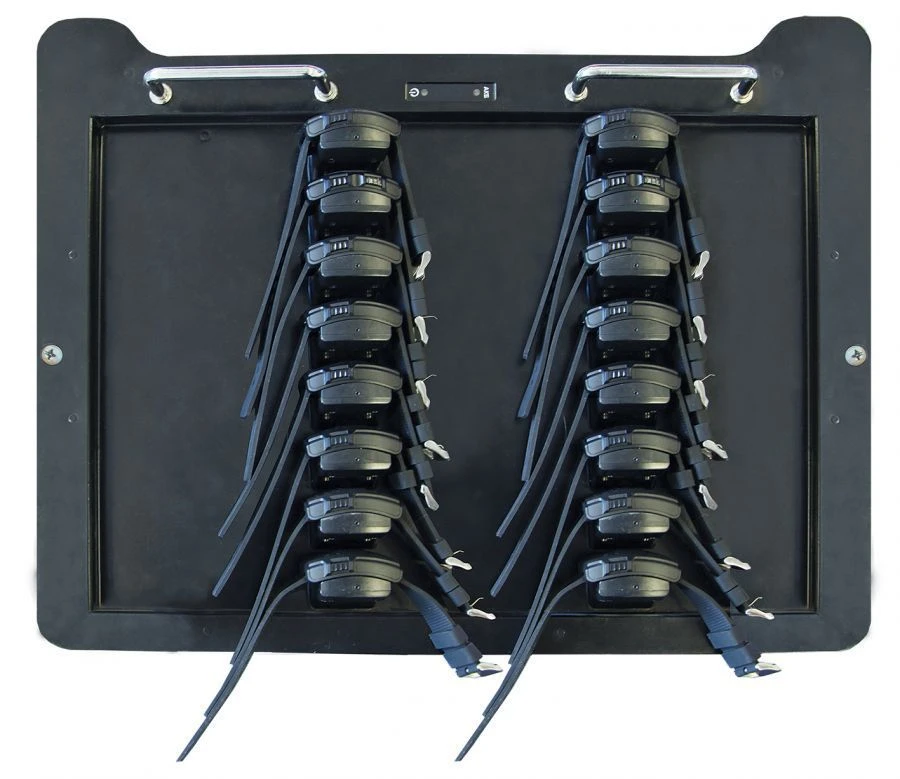

ZU-16M Charger for Efficient Charging of PRO Bracelets

The charger ZU-16M is intended for charging of "Bracelets-PRO" and "Bracelets-PRO esp. D". 1.2The charger is powered from the built-in accumulator battery with voltage of 7.4V and capacity of 6.2A?h and from an external power source: from the car on-board DC network, from the AC network.

The charger has a mechanical switching off of the built-in battery, which should be switched off when: transporting the charger (to ensure safety); when storing the charger for a long time; the need to save as much capacity of the built-in battery as possible. In order to switch on the built-in battery it is necessary to remove the main working part from the case by unscrewing 2 screws and turn the switch "INPUT. battery" to the position "ON".

Battery" switch to the "ON" position. The sounder is able to remove the main working part from the case, disconnect internal cables and mount this working part on a rack with a frame width of 19 inches of "Euromechanics" standard according to GOST R IEC 60297-3-101. Designated service life of the sounder is 10 years.
