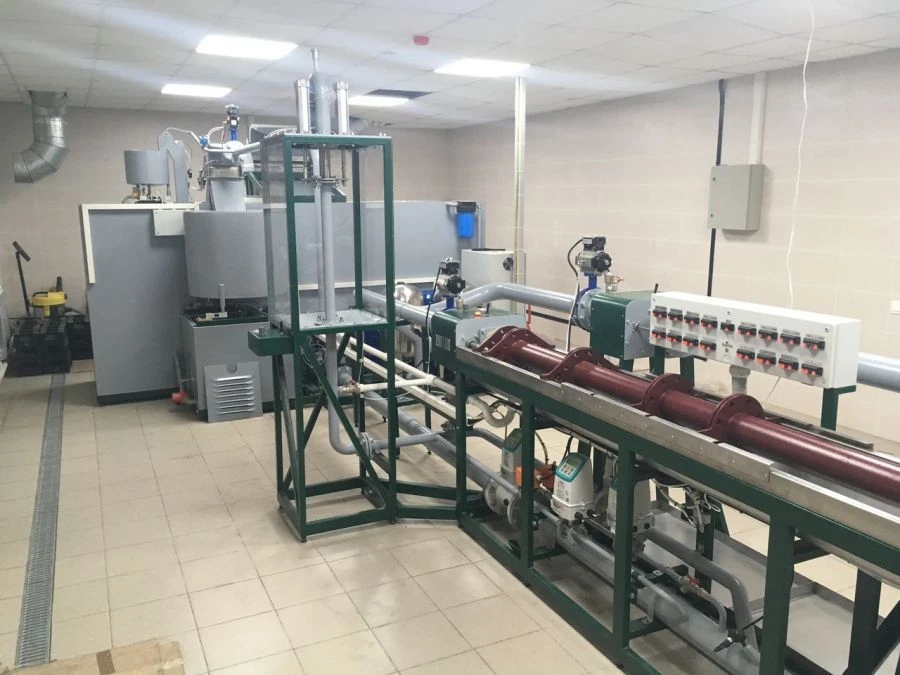

Installation of verification automated UPRS+V-0-0-0-0-R-1-0-0-0-2-0,005-0,010-0400-S

Flow Measurement Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Purpose of the unit: for measuring, reproducing, storing and transferring units of mass, volume of liquid in the flow, mass and volume flow rates of liquid. The principle of operation of the installation is based on the reproduction of mass, volume of liquid in the flow, mass, volume flow rate of liquid, created by means of the system of flow creation, and measurement of flow rate and quantity of liquid in the flow by measuring instruments used in the installations as reference: weighing devices or flow meters-counters of liquid. The medium to be measured is water. Installations consist of measuring instruments of mass, volume of liquid in the flow, mass, volume flow rate of liquid, measuring sections, piping with shut-off and regulating valves, control systems, auxiliary equipment, control system, data collection and processing, internal or external systems of storage and preparation of the measured medium, system of creation, stabilisation and regulation of flow rate and pressure of the measured medium, means of measuring the temperature and pressure of the measured medium, means of measuring...

Specifications

Mark ????+?-0-0-?-1-0-0-2-0,005-0,010-0400-?

Application as secondary and working standards of 2, 3 discharges according to the SPS approved by the order of Rosstandart from 07.02.2018 ? 256

Working pressure 0.01...0.4 MPa

Name Automated verification unit

Lowest flow rate, Qnaim 0.005

Transient flow rate, Qp 0.01

Highest flow rate, Qnaib 400

Lowest flow rate, Qnaim 0.005

Transient flow rate, Qp 0.01

Highest flow rate, Qnaib 400

Relative error limits in the range of flow rates from Qnaim to Qp for measuring mass and volume of liquid in flow 0.15 %

Relative error margins in the flow rate range from Qn to Qnaib when measuring mass and volume of liquid in flow 0.04...0.055 %

Relative error margins in the flow range from Qnaim to Qp when measuring the volume of liquid in the flow, volumetrically. 0.5 %

Relative error margins in the flow rate range from Qp to Qnaib for liquid volume measurement in flow, volumetrically 0.2 %

Service life, at least 15 a

Ambient temperature during operation 15...25 °C

Warranty period B1/B8 2100/900 MHz

Name Automated verification unit

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
