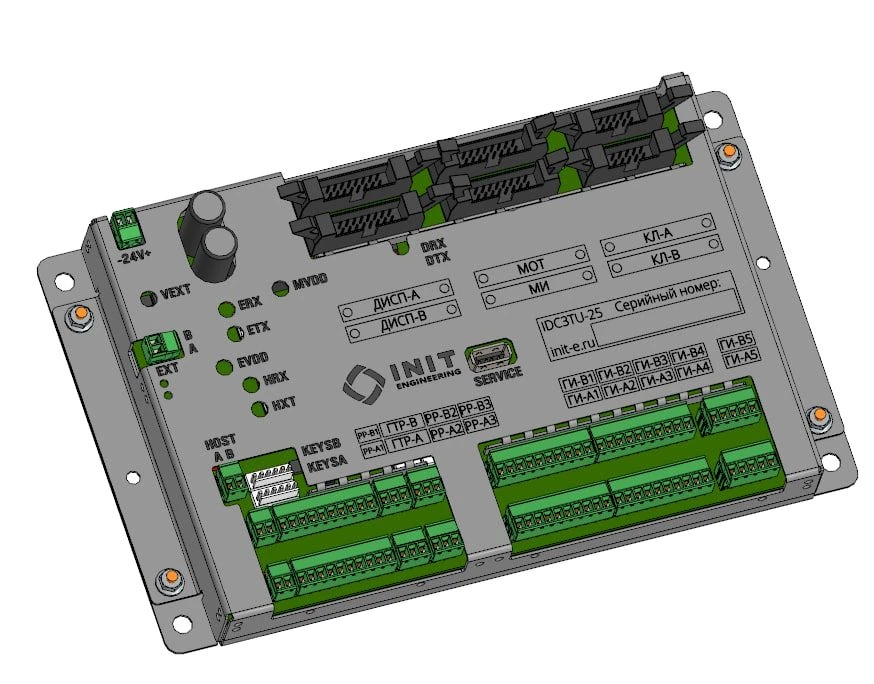

INIT Dispenser Counter (IDC) Electronic counter for fuel dispensers

Electrical Measurement Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Control board for multi-fuel fuel dispenser (fuel dispenser) of petrol station. It provides dispensing, as well as dosing and measuring the volume of fuel dispensed on the fuel dispenser and with the information output on the fuel dispenser scoreboard. Main functions: control of fuel dispensing; calculation of volume and cost of dispensed fuel; control of hydraulic line tightness; electronic alignment of fuel dispensers; issuing of commercial and service information on the fuel dispenser scoreboard; switching off the fuel dispenser monoblock in case of technical necessity; saving of programmed parameters, dispensing results and total counters for unlimited time in case of power failure.

Specifications

Control system interface RS-485, isolated

LCD display modules connection interface RS-485

Number of fuel dispenser hoses in two-side operation mode 5 pc

Upper limit of the fuel dispenser scoreboard readings in the "cost" line 99999.99

Upper limit of the fuel dispenser scoreboard readings in the "price" line 199.99

Upper limit of fuel dispenser scoreboard readings in the "volume" line 9999.99 l

Supply voltage for pulse generator (fuel flow sensor) 5 V

Provided pulse generator power supply line current 0.05 A

Maximum current flow of motor, valve and display control outputs 0.2 A

Device supply voltage 23...26 V

Operating temperature range -40...50 °C

Number of fuel dispenser hoses in one-side operation mode 9

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
