Block Complete Transformer Substation Type BKTP for Efficient Energy Distribution

Block complete transformer substation of BKTP type - are designed to receive electrical energy of three-phase alternating current with frequency 50 and 60 Hz voltage of 6 and 10 kV, transit it (feed-through type substations), convert it into electricity voltage 0,4 kV and supply it to consumers. BKTP are manufactured in accordance with the requirements of GOST 14695-80. BKTPN is a one- or two-transformer outdoor substation in a concrete-block shell.

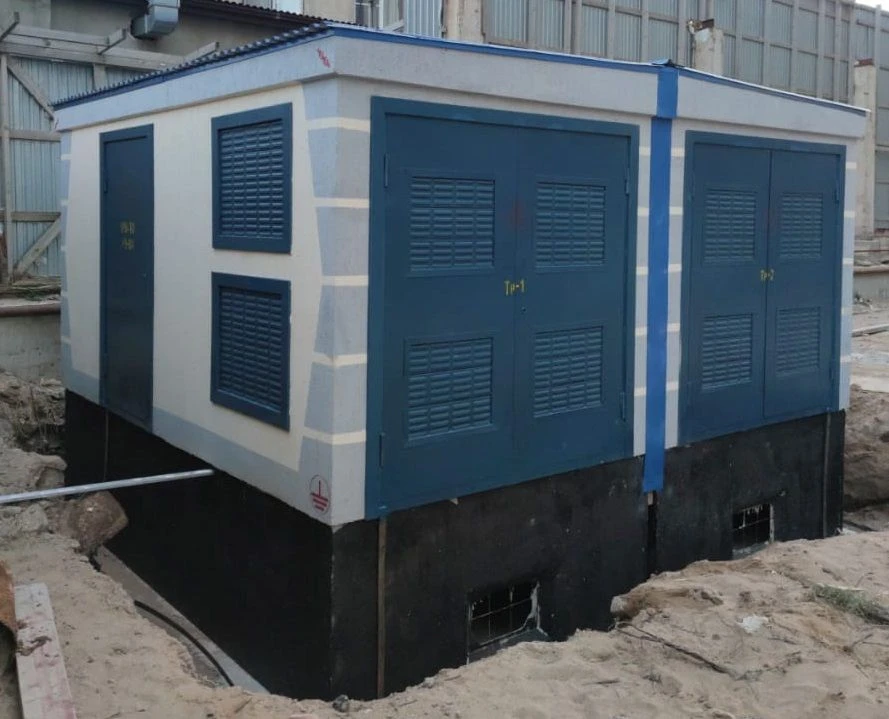

BKTP consists of volumetric modules of transformer substation. Each of the modules has a basement and an above-ground part in the form of reinforced concrete blocks. The basement part is a volumetric reinforced concrete pit consisting of one (cable floor) or two (double floor) volumetric reinforced concrete shells of the cable structure.

The above-ground part is a closed reinforced concrete volumetric shell installed on the volumetric block of the cable structure.
