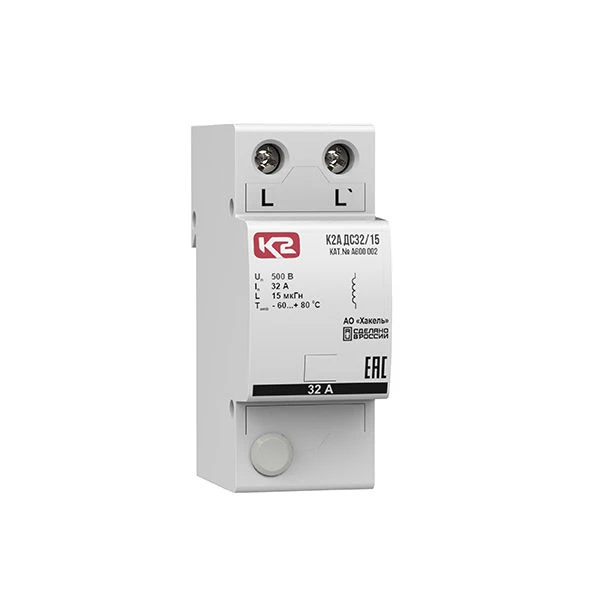

Impulse Separation Choke K2A DC32/15 for Surge Protection Coordination
Manufacturer:
HAKEL OJSC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Pulse isolating choke K2A DS32/15 is intended for coordination of operation of ultrasonic devices of test class I, made on the basis of arresters, and ultrasonic devices of test class II, made on the basis of varistors, in case the distance between them on the power supply cable is less than 10 metres.
Specifications
Current type
DC/variable, 50 Hz
Nominal system voltage
500 V
Rated current
32 A
Inductance
15 µHn
Operating temperature
-60...80 °C
Weight
330 year
Overall dimensions (HxWxH), mm
92x36x66
Mounting
DIN rail 35 mm
