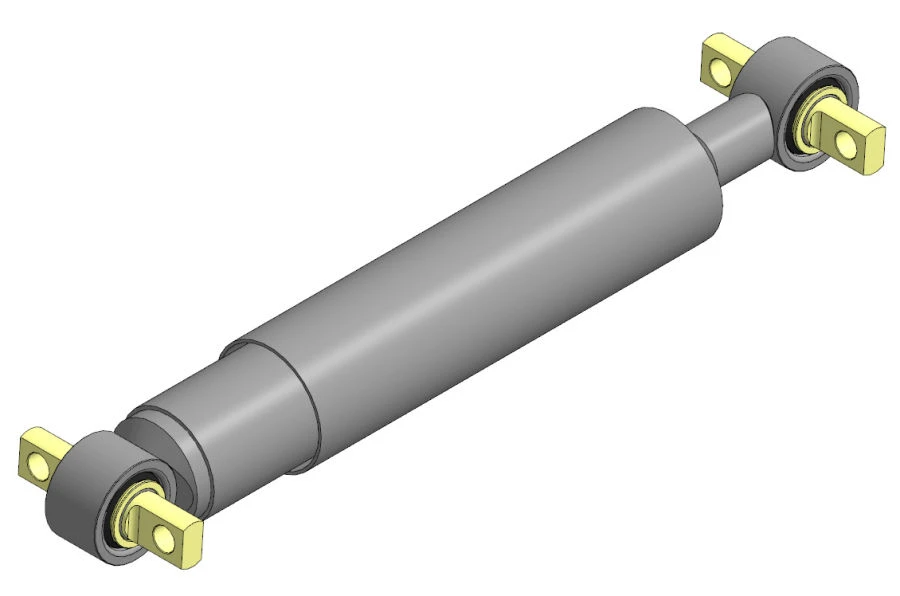

Hydraulic damper UGM 305

Railway Vehicle Parts

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Hydraulic dampers are designed for installation on rolling stock in the bogie spring suspension system in order to ensure standardised indicators of smooth running and impact on the railway track.

Specifications

Type of product according to PP RF 616 Locomotives

Dimension between the centers of the lugs in the compressed position of the damper 542 mm

Dimension between the centers of the lugs in the stretched position of the damper 847 mm

Full piston stroke 305 mm

Dimension between holes in trunnion for mounting bolts 100 mm

Diameter of the hole in the trunnion for the mounting bolts 16.5 mm

Total weight, not less 10 mm

Outer diameter of the housing 74 mm

Outer diameter of the casing 84 mm
