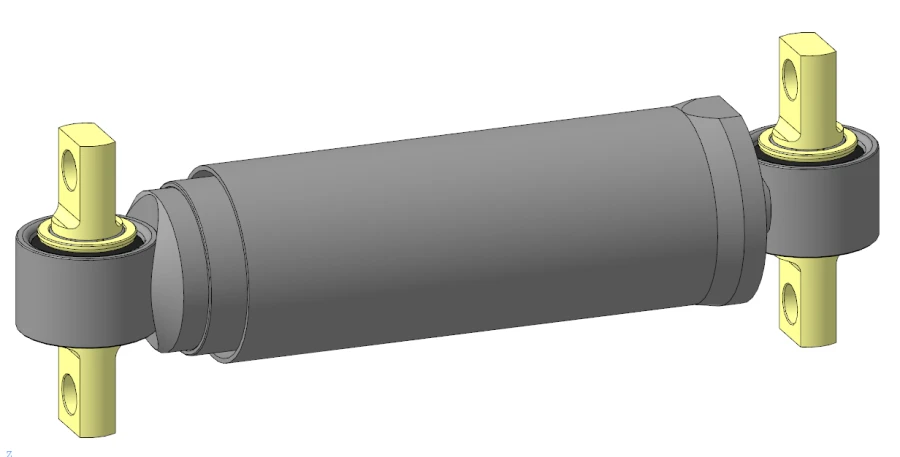

Hydraulic damper UHP 155x50/13

Railway Vehicle Parts

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Hydraulic damper UHP 180x50/13

Description

Hydraulic dampers are designed for installation on rolling stock in the bogie spring suspension system in order to ensure standardised indicators of smooth running and impact on the railway track.

Specifications

Type of product according to PP RF 616 Locomotives

Total weight, not less 9 kg

Full piston stroke One link up to 16GB 64-bit DDR4-2400 MHz with ECC support; 16GB (for CPC1309-01); 8GB (for CPC1309-02) mm

Distance between holes in the mounting trunnions 100 mm

Thickness of the flat part of the mounting studs 16 mm

Diameter of holes in mounting studs 17 mm

Outer diameter of the housing 74 mm

Outer diameter of the outer casing 84 mm

Distance between mounting axes in extended position 478 mm

Distance between mounting axes in the compressed position of the DG 323 mm
