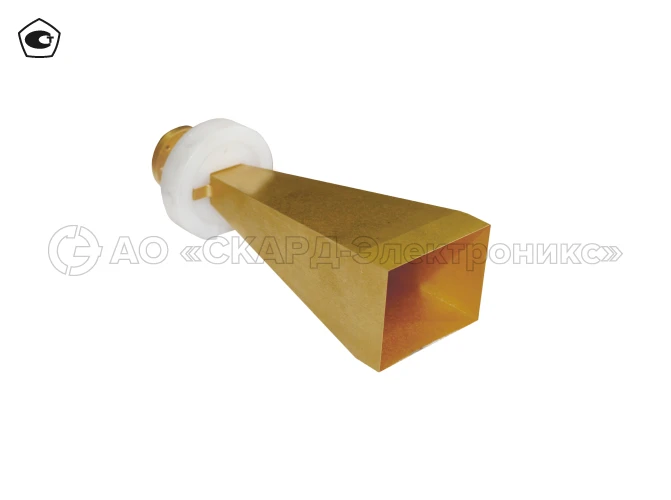

Horn measuring antenna P6-231/4

The principle of action of P6-231/4 antennas is to convert the energy flux density of the electromagnetic field into its corresponding high-frequency power in the path. To expand the possibilities and ensure compatibility with different types of measuring equipment, horn antennas P6-231/4 can be completed with waveguide-waveguide and coaxial-waveguide transitions. Features: recommended for metrological applications and experimental research; has low gain non-uniformity and low VSWR; can be used for measurement of radiation field parameters of antenna systems, parameters of electromagnetic compatibility of radio-electronic devices and material parameters; depending on the delivery variant can be completed with WR15/V(f) and/or interchannel waveguide transition WR15 to cross section 3,6 x 1,8 mm
