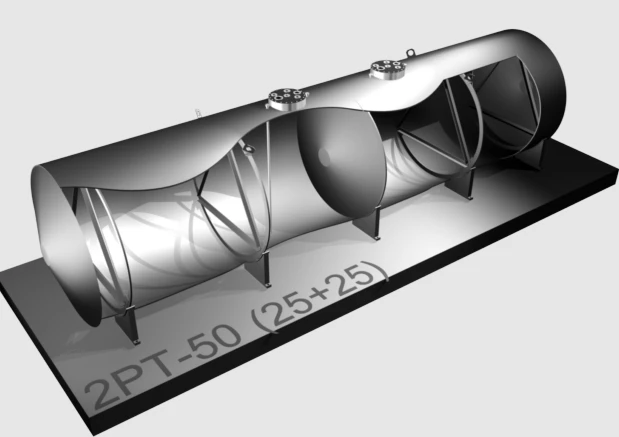

Horizontal Double-Walled Steel Tank Type 2RT – 50 (25+25) for Safe Liquid Storage

Nominal volume m3 25+25
Number of chambers2
Overpressure in the inner chamber MPa(kgS/cm2)0,02
Number of necks in the tank (pcs)2
Number of wells (pcs)2
Chamber bottom thickness (mm)5
Thickness of inner chamber shells (mm)4
Dimensions (length, diameter (mm))9460, 2780
Weight not more than (kg)7600
Service life not less than (years)10
