Horizontal Technological Vessel - Type T, Model Vyevetrivatel for Efficient Processing Solutions

Large Metal Tanks

Manufacturer: GAZPROM VNII GAZ LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

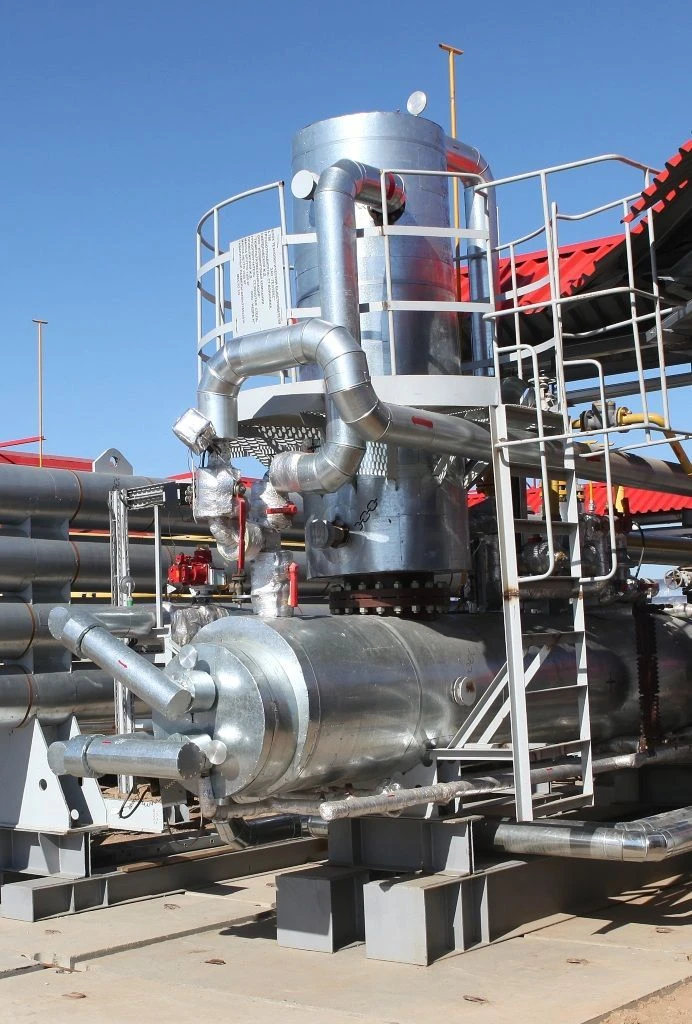

The ventilator is a horizontal apparatus with an inner diameter of 2400 mm and a length of the cylindrical part of 7100 mm. The tank is equipped with process connections, connections for connection of instrumentation and control equipment, hatches for inspection and repair. The tank is transported in horizontal position.

To protect the tank from overpressure there is a system of safety valves (working and reserve). Technical maintenance of the tank consists in periodical revision and cleaning of internal elements with simultaneous cleaning of internal cavities from mechanical impurities and deposits, checking of sealing rings and gaskets, condition of threaded joints. Before steaming of the tank body all control and measuring equipment should be switched off or dismantled to avoid damage by high temperature.

The tank is subjected to external and internal inspection at least once in 2 years and to test pressure tests in accordance with the test schedule.

Specifications

Height

3932 mm

Width

2636 mm

Length

8736 mm

Hatch height

540 mm

Barrel type

Type of execution

ground

Availability of a handle

Assignment

for storage of gaseous, liquid and other substances, fulfilment of technological processes (thermal, chemical, etc.) in gas, oil, processing industries.

Capacity

37400 l

Operating medium

Hydrocarbon condensate, hydrocarbon gas, formation water, mechanical impurities

Operating temperature

-25...7 °C

Working pressure

4.15 MPa

Availability of thermal insulation

Got it

Availability of pontoon

Material

09G2S steel

Model

?????????????

Metal thickness

NZ-150-14,5 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
