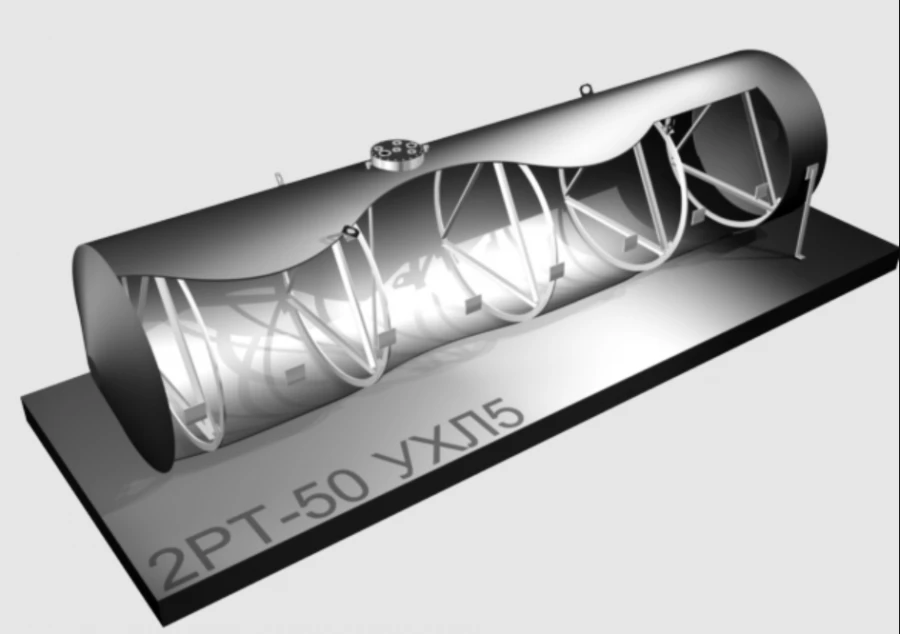

Horizontal Cylindrical Steel Storage Tank Type 2RT - 50 for Efficient Liquid Storage

Nominal capacity (m3) 50
Number of chambers1
Overpressure in the inner chamber MPa(kgS/cm2)0,02
Number of necks in the tank (pcs)1
Number of wells (pcs)1
Chamber bottom thickness (mm)5
Thickness of inner chamber shells (mm)4
Dimensions (length, diameter (mm))9400, 2780
Weight not more than (kg)4800
Service life not less than (years)10
