High-voltage meter-former Installation UPEM

Electrical Measurement Systems

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

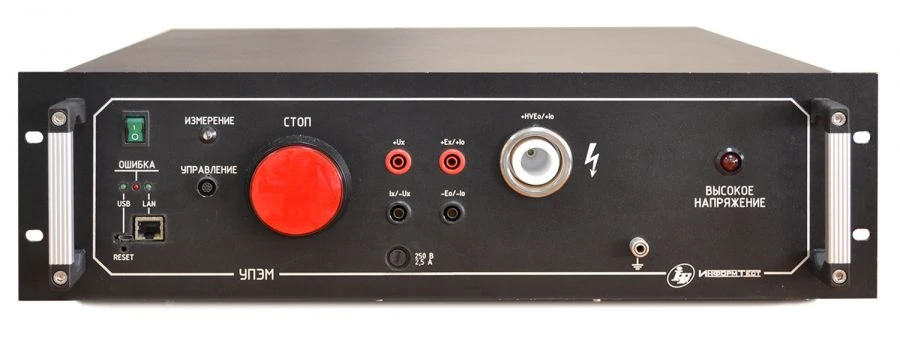

The UPEM meter-former is designed as a separate device in the LXI standard. It combines the functions of multimeter, megohmmeter, breakdown meter and LCR-meter. It can be used both as a part of the TEST-9110 series wiring testers and as a separate device.
Information communication with PC can be carried out both via USB interface and LAN interface.

Specifications

Test voltage 4000VDC/3000VAC

DC voltage measurement -700 to 700 V

Measurement of DC current force -1 to 1 A

Measurement of ac voltage RMS value 0 to 700 V

Measurement of RMS value of AC current force 0 to 100 mA

Measurement of DC resistance with 4-wire measurement scheme 1 mOhm to 10 mOhm

DC resistance measurement with 2-wire measurement scheme 1 ohm to 10 megohms

Measurement of electrical capacitance 100 pF to 100 mF

Measurement of inductance 1 µGn to 1 mGn
