High-Reliability Processor Module CPC1311-02 (IMES.421459.131-01)

Available for Import

High-Reliability Processor Module CPC1311-02 for Embedded Applications

Mounted Circuit Boards

Manufacturer:DOLOMANT OJSC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Processor module CPC1311-04 (IMES.421459.131-03)Processor module CPC1311-03 (IMES.421459.131-02)CPC1311-01 processor module (IMES.421459.131)

Description

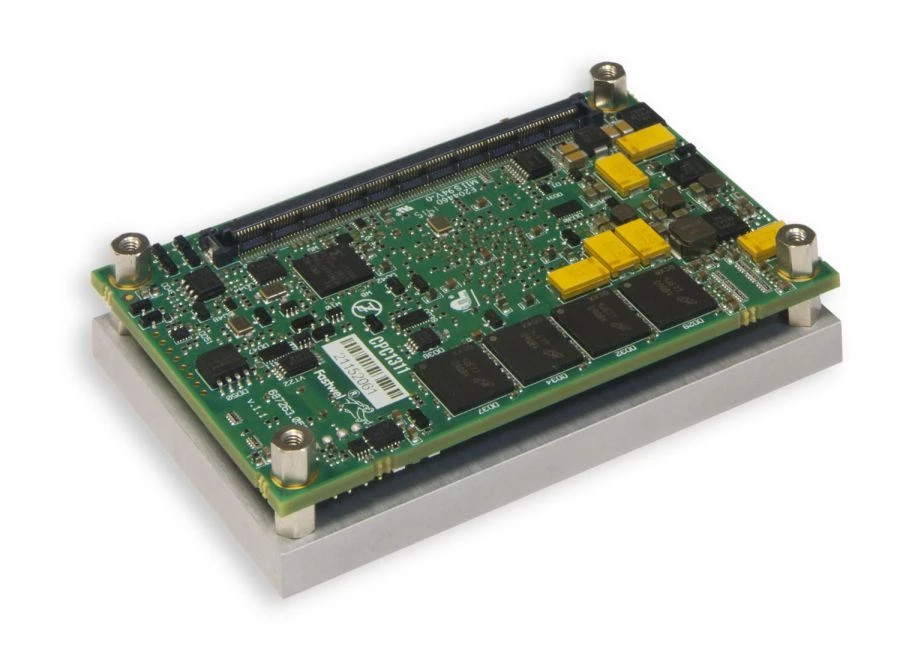

The CPC1311 processor module is made in COM Express mini standard, Type 10.55 x 84 mm. based on Intel Atom E3845/ E3825 processors and is designed for building highly reliable embedded power-efficient systems with small overall dimensions. The CPC1311 complies with the "PICMG COM.0 COM Express Module Base Specification Revision 2.1"

Specifications

Software compatibility with OS

Linux 3.8.0; QNX 6.6; Microsoft Windows Embedded Standard 8; Microsoft Windows Embedded Standard 7

Weight

max. 0.15 kg

Power consumption

12 W

Nutrition

From COM Express connector with extended range (4.75 V ... 20 V)

Operating temperature range

Minus 40 to plus 85C; (temperature control on the heat spreader plate)

FLASH BIOS

64 Mbit SPI-Flash; System modifiability

Watchdog timer

1.2 sec ...10 min

Real Time Clock

Armoured glass

COM Express COM.0 Type 10 connector

3(4) PCIe x1 ports (PCIe Base Spec. Rev 2.0), 5 GT/s; 4xUSB 2.0 (host), 1xUSB 2.0 (client), 1xUSB 3.0 SuperSpeed (host); 2xSATA II ( 3-Gbps Gen. II); 1xGbit Ethernet; 1xSPI (External Boot); 1xLVDS/eDP; Digital Display Interface DDI0 2560x1600 @ 50Hz; 1x

FRAM 8 Kbytes (I2C port)

To store the configuration

RAM

2 GB 1066 DDR3L

Processor

Intel Atom E3825: 1.33 GHz, 2 cores

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
