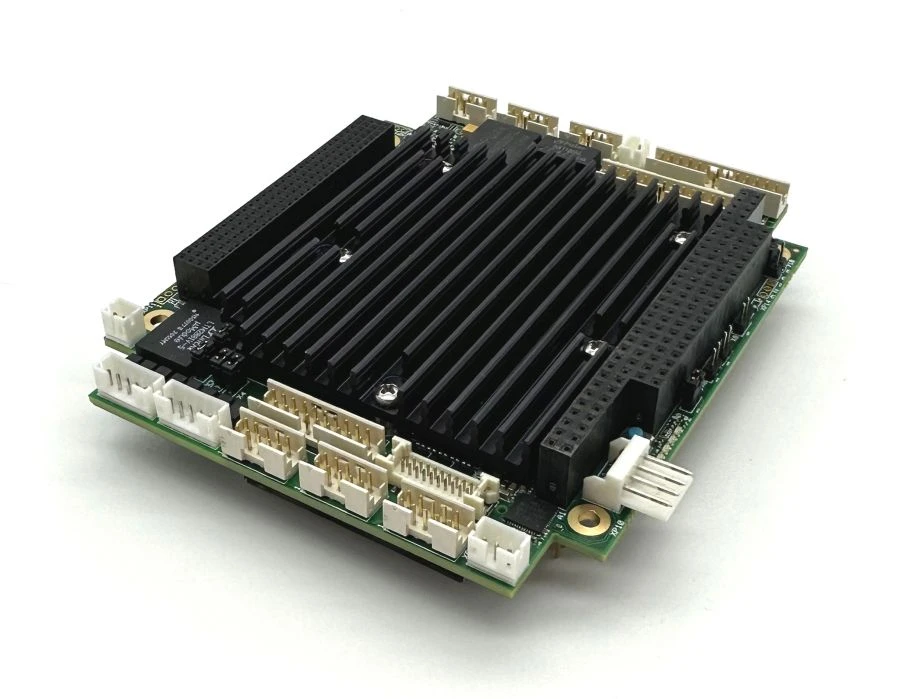

High-Integration x86 Processor Module CPC316-02-COATED for Real-Time Control Applications

Mounted Circuit Boards

Manufacturer: DOLOMANT OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Processor module CPC316-01-COATED (IMES.467444.114-02) Processor module CPC316-02 (IMES.467444.114-01)

Description

The product is a highly integrated solution on the x86 platform for use in real-time control systems, production control, data acquisition and processing and can operate in stand-alone or slave mode. Connection of basic input-output means (VGA monitor, LVDS panel, keyboard, printers, USB) allows to use the product in systems with operator participation. For data storage can be used as an internal drive or Compact Flash card, as well as external USB devices.

The product is designed in PC/104-plus format. In addition, the product allows for rapid replacement of the operating software embedded FPGA (FPGA), which provides additional opportunities for its adaptation to specific tasks. Expansion of the functionality of the product is also possible through the connection of additional expansion modules format PC/104 and PC/104-plus.

The product can be connected to RS-232, RS-485, Ethernet networks.

Specifications

Moisture-proof coating

Armoured glass

Operating temperature range

From minus 40 to plus 85 C

Nutrition

Supply voltage: +4.75 to +5.25 V; current consumption: 2 A @ 5 V; protection against overvoltage and polarity reversal when supply voltage is applied via additional connector

Software compatibility with OS

Microsoft MS-DOS6.22, FreeDOS; Linux 4.19; Windows Embedded Standard 7

Buzzer

Armoured glass

Measurement of module secondary supply voltages by built-in ADC

Armoured glass

Integrated module temperature sensor

Measuring range minus 55 to plus 125 °C

Watchdog timers

Two built in processor with 30.5 µs512 s response interval; external, fixed 1.6 s response interval

Built-in 3 V lithium battery

CR2032, typical capacity 200 mA*h

Real Time Clock

Armoured glass

PC/104 (ISA)

16-bit ISA bus, bus frequency 8/16 MHz

Universal digital I/O port

48 CMOS/TTL lines, load up to 24 mA; possibility to change port functions (circuitry) in the system

Serial ports

COM1, COM2: RS-232, скорость обмена до 115.2 кбит/с, защита от ESD 15КВ (IEC1000-4-2); COM3, COM4: изолированный RS-422/485 с цепями грозозащиты, скорость обмена до 115.2 Кбит/с, индивидуальная изоляция каждого порта от системы 500 В, автоматическое (аппар

SATA drive connection port

Standard SATA connector; 1.5 Gbit Gen I and 3 Gbit Gen II

USB (host) ports

Support USB 1.1, USB 2.0 (HS, FS, LS); connect up to 4 devices

LAN ports

10 / 100 Mbps port; 10 / 100 / 1000 Mbps port; 500 V system isolation of each port

FLASH disk

Connected to SATA interface; at least 8 Gbytes of NAND Flash; read/write speed - 100 / 80 Mbytes / s; built-in wear control and ECC; availability of Compact Flash slot

Non-volatile RAM

32 Kbytes, SPI interface; no battery power required

Video subsystem

Video controller with 2D accelerator; VGA monitor connection port with resolution up to 1920x1080, colour 32 bits

RAM

DDR3 SDRAM 2 Gbytes (soldered on the board); memory bus bit rate 32 bits; memory bus operating frequency 533 MHz

Processor

Vortex86DX3
