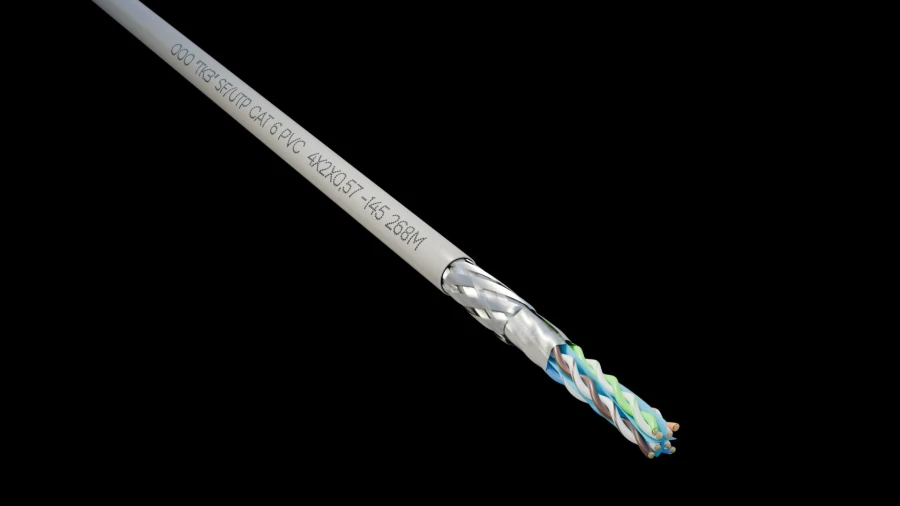

High-frequency cable SF/UTP Cat 6 PVC 4x2x0,57

Construction:Cores of copper wire with PE insulation, twisted in pairs with steps, not equal and not multiples of each other. The pairs are twisted into a core, separated by a polymer separator with unidirectional twisting. A common shield made of braiding with tinned copper wires over aluminopolymer tape is applied over the core. On top of the screen there is a sheath made of polyvinylchloride plasticate.Field of application:The cable is designed for single stationary, horizontal and vertical laying inside buildings and structures, with group laying - mandatory use of passive fire protection means according to GOST 31565-2012, for operation in the range up to 250 MHz (category 6 according to GOST R 54429-2011) and ISO / IEC 11801. Climatic version U, placement category 3, 4 according to GOST 15150
