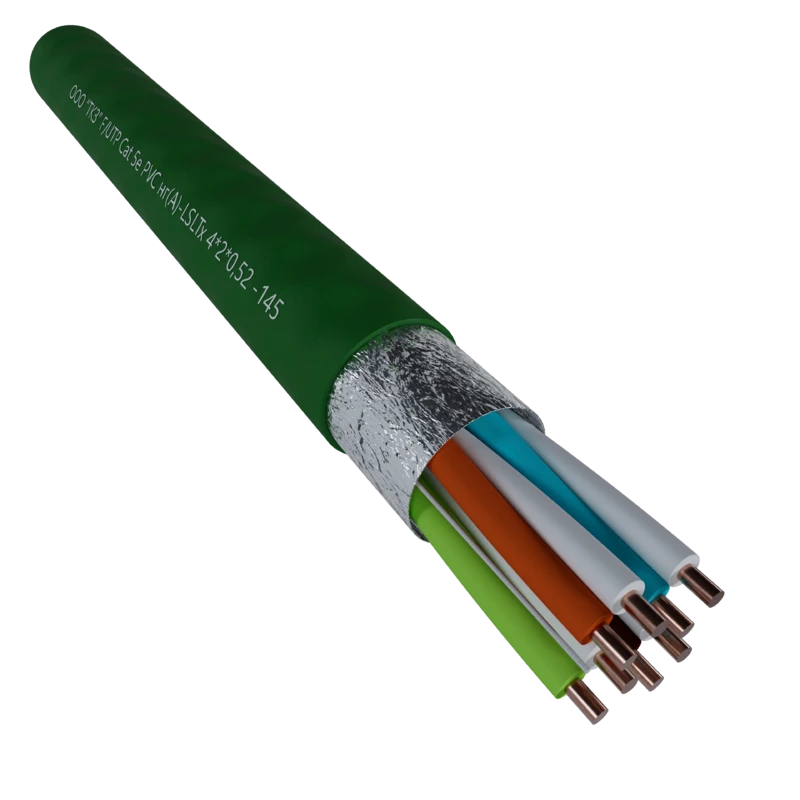

High-frequency twisted pair cable F/UTP Cat 5e PVC ng(A)-LSLTx 8?2?0,50

Construction:
Cores of copper wire with PI, twisted in pairs with steps, not equal and not multiples of each other.Pairs are twisted in a core by unidirectional twisting.It is allowed over the core overlapping belt insulation from PET tape.Over the core is overlapped screen from aluminopolymer tape with contact conductor from tinned copper wire with diameter 0,4mm.Over the screen is overlapped sheath from low toxic PVC plasticate with low smoke-gas emission.
Scope of application:
The cable is designed for horizontal and vertical laying, taking into account the volume of combustible load in the buildings of kindergartens, schools, hospitals, where it is required to use a cable that does not spread combustion in group laying category A with a sheath of low-toxic PVC plasticate with low smoke-gas emission according to GOST 31565-2012, to work in the range up to 100 MHz (category 5 and 5e according to GOST R 54429-2011) and ISO / IEC 11801. Climatic execution U, categories of placement 3, 4 according to GOST 15150.
