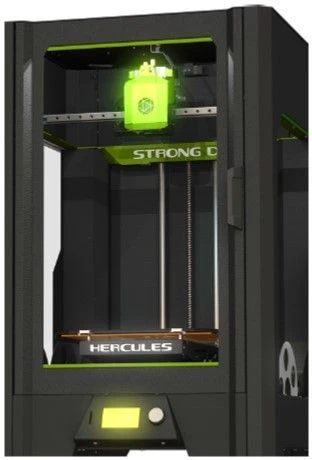

Hercules Strong Duo 3D Printer with Dual Extruders

Available for Import

Hercules Strong Duo 3D Printer for Dual Material Printing

Material Extrusion 3D Printers

Manufacturer: IMPRINTA COMPANY LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

3D printer with 300300400 working chamber equipped with two extruders with the ability to print 2 different materials simultaneously with inactive nozzle extrusion protection and high switching speeds The developed "TwinHot" hotend with two extruders, design solution of the working chamber and Hercules control board and Hercules power board provide high speed of printing products with two materials (up to 50 cc per hour) and works with standard and flexible materials (ABS, PLA, POM, PVA, HIPS, PETG, FLEX, PP, RUBBER, CARBON, ETERNAL, SBS, PC-ABS, NYLON, WOOD). The developed systems of plastic control "Sensitive check", nozzle calibration "NBN System", "Stand by", unique automatic calibration (platform and zero point calibration) and a comprehensive light indication system automate the work with the 3D printer and allow to reduce the requirements to the user of the equipment Allows printing with nozzles with diameters from 0.2 to 1.2 mm and layer thicknesses from 20 to 900 µm

Specifications

System for controlling the availability and supply of plastic

Sensitive check

Printer status notification system

SNOT System

Type of printer control

Control panel with monochrome display and encoder

Calibrating the table plane

Automatic calibration of the working surface with manual control of the height of the first layer

Protection against spontaneous extrusion

Yes, shut-off valves.

Nozzle switching method

Lifting inactive nozzle

Automatic calibration of nozzle height difference

Yes, NBN system

Automatic nozzle switching

Armoured glass

Automatic nozzle cleaning before printing

Armoured glass

Adjustable clamping device for different types of filaments

Armoured glass

Type of hotend

Teflon

Plastic thread diameter

1.75 mm

Model cooling

Double-sided, adjustable

Table temperature

125 °C

Extruder heating temperature

280 °C

Extruder cooling

Active, airy

Platform type

Heated, removable glass, fixed with holders

Housing material

Steel

Housing type

Closed with controlled forced ventilation

Capacity with flexible materials per hour

Working chamber volume

NZ-150-14,5 l

Print material change time

2.3

Supported materials

Clotho ABS, FormaX, ABS, PLA, HIPS, ASA, ABS/PC, PET, PC, FRICTION, CAST, RELAX, TERNAL, FLEX, SEALANT, PETG, AEROTEX, CERAMO, WAX, SBS, SBS PRO, PROTOTYPER SOFT, TOTAL PRO, NYLON, TPU A93, eTPU-95A, Total GF-30, Titan GF-12, Flex Medium, Flex Hard

Capacity per hour

SBVVBG

Number of printheads

2 pcs

Maximum nozzle diameter

1.2 mm

Minimum nozzle diameter

0.2 mm

Maximum print layer thickness

0.9 mm

Minimum thickness of the printed layer

0.02 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
