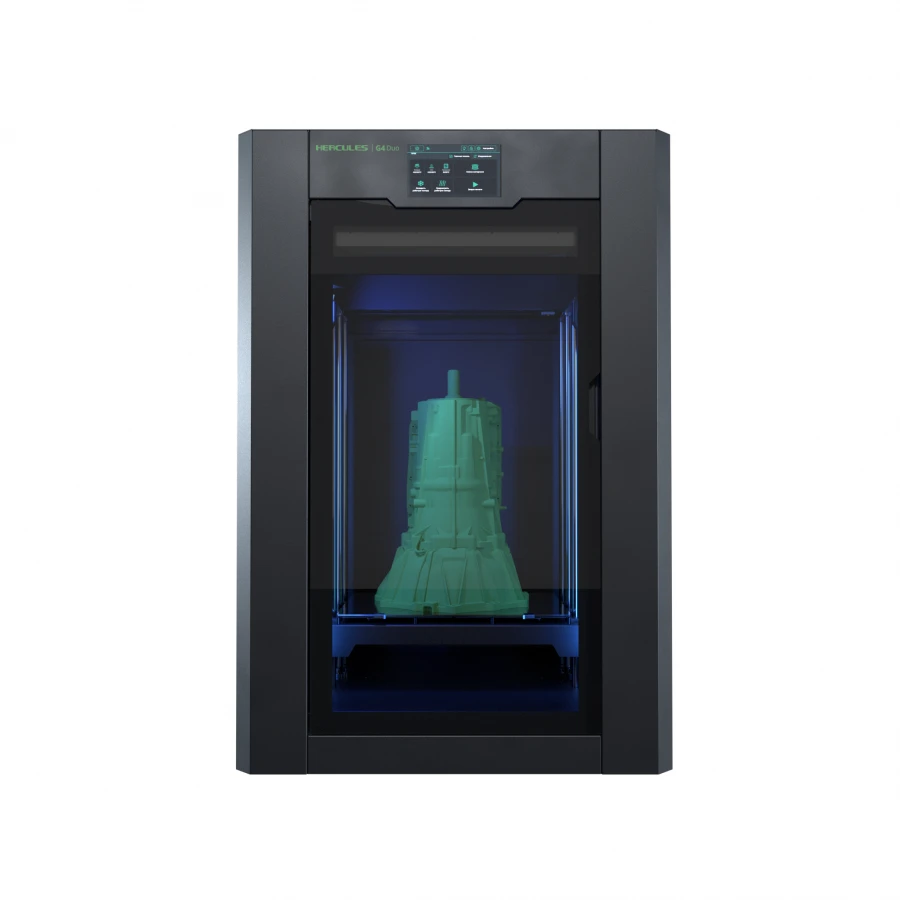

Professional 3D Printer Hercules G4 DUO for Businesses

Available for Import

Professional 3D Printer Hercules G4 DUO for Efficient Production Tasks

Material Extrusion 3D Printers

Manufacturer: IMPRINTA COMPANY LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Professional 3D printer with two extruders for small and medium-sized businesses. Designed for medium-level production tasks. The printer is characterised by an output of up to 162 cm3/h, a heated chamber up to 65 °C and a working field of 400×300×600 mm.

It has a large set of automations and is easy to handle. The printer is above the level of desktop printers. It can work with technical and flexible materials, all engineering materials, composites, elastic, and is also capable of working with high-temperature materials PEEK and PEKK.

It allows printing with nozzles with diameters from 0.3 to 1.2 mm with layer thicknesses from 10 to 900 µm.

Specifications

Heating chamber temperature

65 °C

Number of printheads

2 pcs

Supported materials

ABS, PLA*, PETG, TPU, CF & GF Composites, PEEK, PEKK, BASF 316L & 17-4 PH, SEBS and others.

Working chamber volume

72 l

Minimum thickness of the printed layer

0.1 mm

Maximum print layer thickness

0.9 mm

Minimum nozzle diameter

0.3 mm

Maximum nozzle diameter

1.2 mm

Capacity per hour

162

Platform type

Aluminum heated platform, removable glass fixed with holders

System for controlling the availability and supply of plastic

Sensitive PROCheck

Print Warp Control System

SolidPrint PROCheck

Type of printer control

Color touch screen display, 7 inches

Network connection

Ethernet, Wi-Fi

Remote control

Yes, Diaprint Cloud and Diaprint APP

Limited printer access system

Smart Lock System

Air filtration system

Replacement charcoal filter (air purification classification - G)

Housing type

Closed enclosure

Housing material

Steel

Extruder cooling

Active, airy

Extruder heating temperature

420 °C

Table temperature

150 °C

Model cooling

Double-sided, adjustable

Plastic thread diameter

1.75 mm

Type of hotend

All-metal with titanium thermal barrier (up to 420 C)

Adjustable clamping for different types of filaments

Armoured glass

Automatic nozzle cleaning before printing

Armoured glass

Insulation of the heating unit

Armoured glass

Cold zone overheating control

Armoured glass

Feed control and pause

Armoured glass

Calibrating the table plane

Automatic calibration of the work surface

Print material filter

Yes, replaceable filament filter

Built-in web camera

Armoured glass

Printer status notification system

SNOT System

Nozzle switching method

Electric, with inactive extruder lifting.

Presence of protection against spontaneous extrusion

Yes, shut-off valves

Possibility to change the hotend

Armoured glass

Replacement hotend material

Teflon (up to 250C)

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
