Heat exchanger cube product

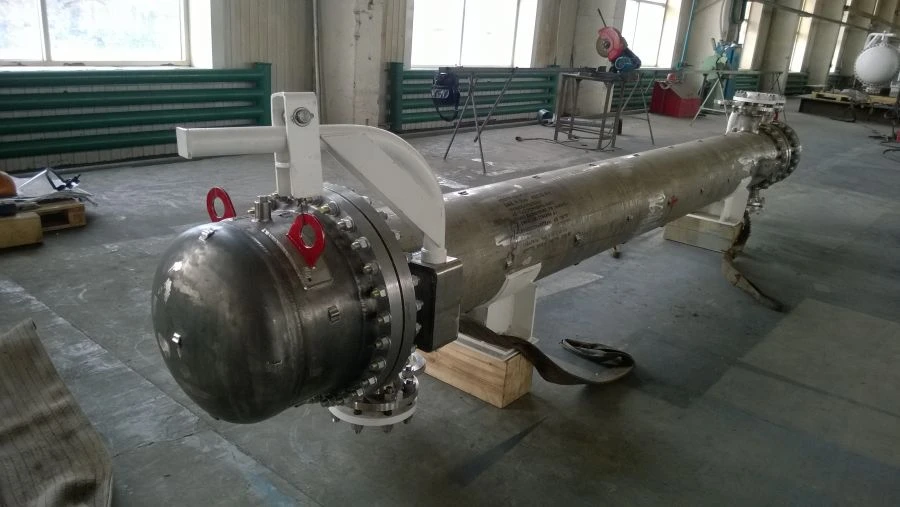

Cube product heat exchanger 400TPG-2,5-M*/25G-4,7-K-4-UHL1 is designed for cooling and heating of liquid media in technological processes. Heat exchanger cube product 400TPG-2,5-M*/25G-4,7-K-4-UHL1 - Heat exchanger apparatus with floating head, horizontal; diameter of the apparatus body - 400; for conditional pressure in pipes and casing - 2,5 MPa; material execution M*: basic material; heat-exchange pipes 08?18?10?, pipe grid, floating head cover - 12?18?10?, the rest - 09?2?; with smooth heat-exchange pipes with diameter - 25, length 4,7 m, with pipes arrangement in the pipe board by square; 4-way on pipe space; place of installation in moderately cold climate - climatic execution 1.
Heat exchanger cube product 400TPG-2,5-M*/25G-4,7-K-4-UHL1 - design pressure 2,5 MPa; average permissible air temperature -40 C ; working medium: intertube space - lower CO K-1 (liquid), pipe space - cube product K-0 (liquid); capacity: ... .
