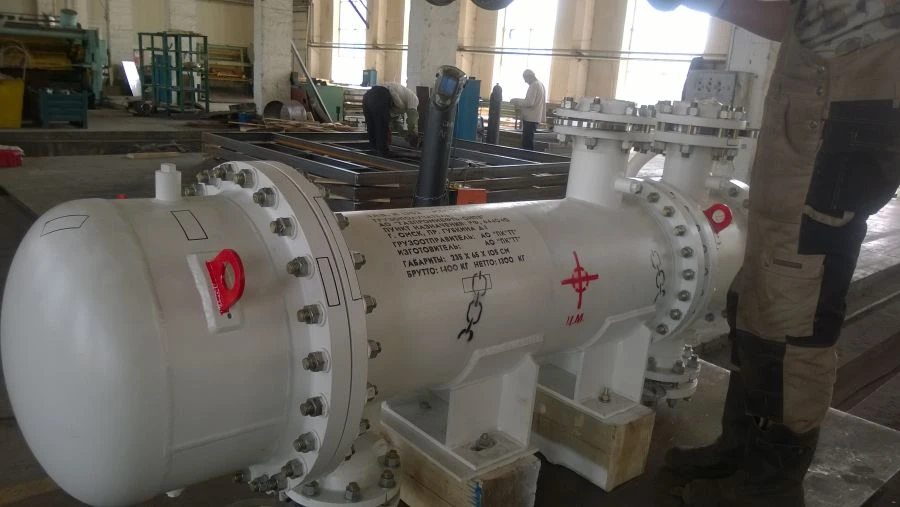

Fuel gas heater

Fuel gas heater 400TPG-4,0-1,6-M1*/25G-1,5**-K-2-UHL1-I is designed for heating gaseous media in technological processes. Fuel gas heater 400TPG-4,0-1,6-M1*/25G-1,5**-K-2-UHL1-I - Heat exchange apparatus with floating head, horizontal; apparatus body diameter - 400; for conditional pressure in the pipes - 4,0 MPa and in the casing - 1,6 MPa; material execution M1*: basic material - 09G2S; with smooth heat-exchange tubes with diameter - 25, length 1,5 m, with pipes arrangement in the tube board by square; 2-stroke by tube space; place of installation in moderately cold climate - climatic execution 1, with details for thermal insulation fastening.
Fuel gas heater 400TPG-4,0-1,6-M1*/25G-1,5**-K-2-UHL1-I - design pressure 1,6 MPa; average permissible air temperature -40 C; working medium: intertube space - fuel gas, tube space - heavy gasoil; capacity: tube space - 0,27 m3, intertube space ... .
