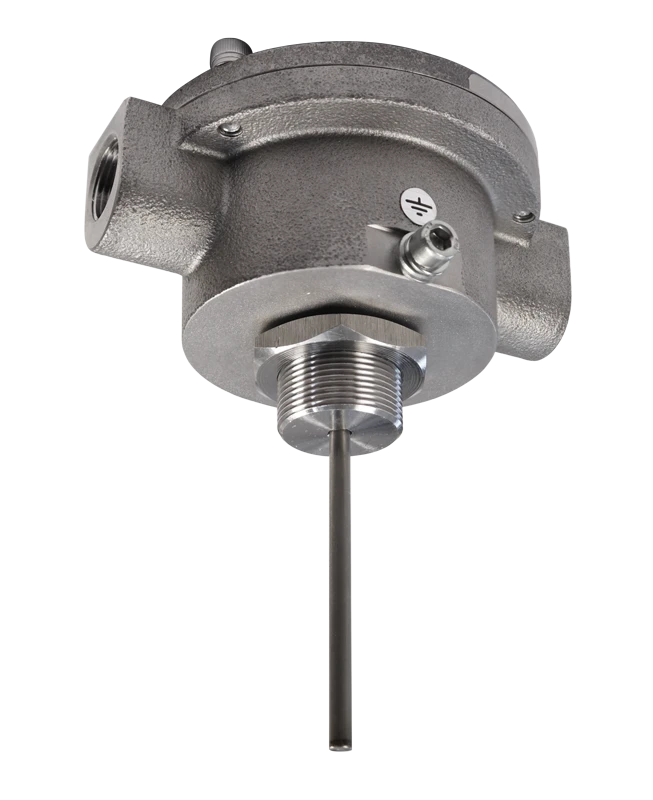

Heat Detector S2000-Spekron-101-T-R-N for Integrated Fire Safety Systems

The thermal point fire detector is used with the S2000-KDL or S2000-KDL-2I two-wire communication line controller as part of the Orion integrated security system. Orion integrated security system. Power supply and information exchange are carried out via two-wire communication line KDL.

It supports the DPLS_v2.xx two-wire communication line protocol and allows receiving the DPLS voltage value at the place of its connection. The software version is v.1.01. Electromagnetic compatibility of the detector complies with the requirements of stability group 3.

The detector is designed for operation in hazardous areas of premises and outdoor areas, in underground workings of mines, mines and their above-ground structures. The housing is stainless steel. Explosion protection marking of the electronic block - RV Ex db [ia Ma] I Mb X/ 1Ex db [ia Ga] IIC T6...T4 Gb X/ Ex tb [ia Da] IIIC T85ºC...T135ºC Db X.

Explosion protection marking of the sensitive element - PO Ex ia I Ma X/OEx ia IIC T6...T2 Ga X/Ex ia IIIC T85ºC...T250ºC Da X.
