GTE-170 axial compressor flushing system

Special Purpose Equipment

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

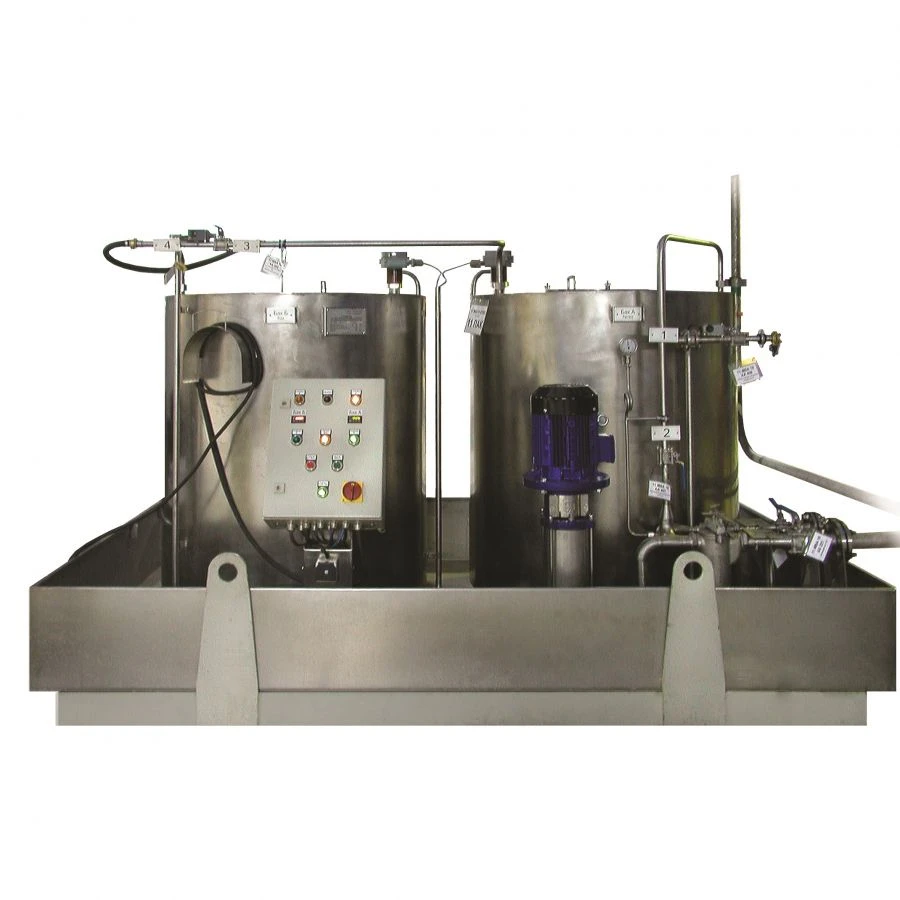

The system of washing of axial compressor of gas turbine unit GTE-170 is designed for removal of deposits appearing on parts of flowing part of axial compressor during operation.
The flushing system consists of:
- a set of nozzles (nozzles, supply hoses, manifolds, fasteners) designed for flushing the flow part of the axial compressor on cold cranking (CC);
- set of nozzles (nozzles, supply hoses, manifolds, fasteners), designed for flushing the flow part of the axial compressor on the move;
- device TPM01 (or its modifications) for preparation and supply of washing solution.
The device is connected to sets of nozzles for flushing on the move and on the compressor.

Technical Specifications

Weight, not more	1000 kg
Length, max.	2700 mm
Width, no more	1700 mm
Height, max.	1900 mm
Number of tanks	2 pc
Volume of each tank	1250 l
Pump capacity, not more than	150 l
Required voltage	380 V
Mains current frequency	SBVVBG
Power consumption, max.	6 kW
Number of nozzles (RPM)	44 pc
Capacity of one nozzle (stroke), not less than	0.6 l
Working pressure (COP), not less than	10
Number of nozzles (KP)	B1/B8 2100/900 MHz pc
Capacity of one nozzle (CW), not less, l/min	14.6 l
Working pressure (CP), not less than	5.5

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
