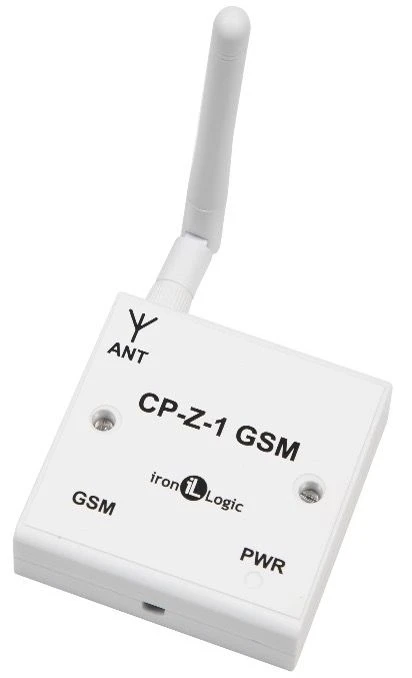

GSM reader, model: CP-Z-1 (mod.GSM)

Electrical Interface Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Designed for use in access control and management systems (ACS) using GSM standard cellular communication and allows the incoming call phone number to be used as an identifier for access control. In addition, incoming SMS messages can also be a source of identifier. The received identifier in the form of a certain code sequence can be further transmitted:1. To the controller via iButton (Dallas Touch Memory) or Wiegand protocols.2.In a personal computer (PC) via RS-485 interface.Features of the reader:- the possibility of identifying the phone number during a call and when receiving SMS-messages;- setting the parameters of the reader via SMS-messages;- the RS-485 interface allows you to connect the reader to a computer, and both receiving codes from the reader and setting the parameters of the reader are possible;- the connector for connecting the GSM antenna allows you to increase the level of reception of the network signal by connecting a remote antenna.

Technical Specifications

Operating frequency	GSM standard
Identification by phone number	By call and SMS
Reading range	6...10 cm
Output interface	Ibutton (Dallas Touch Memory), Wiegand (26, 34, 42, 50, 58), RS-485
Code transfer format	BCD, HEX
Database of numbers: administrators	4 pc
Database of numbers: users	15 pc
Connector for connecting an external antenna	SMA-F
Maximum communication line length: Dallas Touch Memory	15 m
Maximum communication line length: Wiegand	100 m
Maximum communication line length: RS-485	10 m
Light indication	Got it
DC supply voltage	8...27 V
Consumption current (at 12V)	Not more than 500 mA
Switching current	Not more than 100 mA
Dimensions	65x65x20 mm
Housing material	ABS plastic
Operating temperature	-40...50 °C

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
