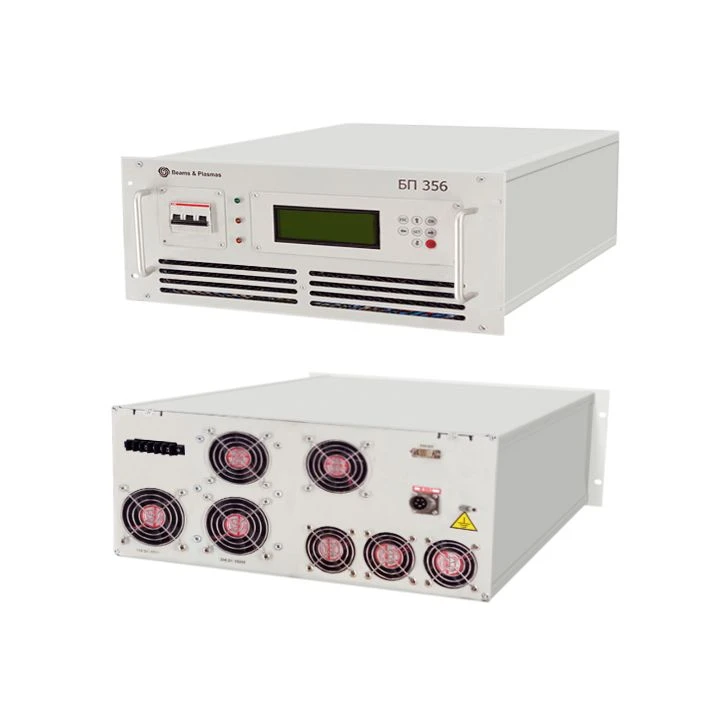

Ion source power supply unit (6 kW)

Electrical Interface Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

The unit is designed for regulated DC voltage power supply of ion sources with power up to 6 KW used in vacuum coating plants.

The power supply unit is equipped with:
- RS-485 interface for communication with a computer
- Modbus RTU control
- voltage stabilisation mode with current limitation
- output voltage converter
- controller with display and controls

*The operating manual is available on request: LCMK.356.00.00.00.00.000 RE ION SOURCE POWER SUPPLY UNIT BP 356
It is allowed to deliver the device as a part of the installation without packing.
On request, standard modernisation of the device by the manufacturer is possible.

Specifications

Assignment Supply of regulated DC voltage power for ion sources up to 6 KW for use in vacuum coating systems.

Dustproof Yes - The unit housing is made of metal and has no exposed live parts.

Front panel control Got it

Type of construction Built-in, Stationary

Warranty period 1 a

Climatic designs GOST 15150-69; GOST 15543-70 at normal values of climatic factors of the environment - UHL for product placement category 4.2

Power supply voltage 380 ±10% V

Voltage regulation range 1000-3000 V

Current control range 0,2-2 A

Power control range 200-6000 W

Maximum power 6 kW

Maximum power output 6000 W

Stabilization modes Voltage, current

Output voltage polarity Positive

Accuracy of stabilized parameter maintenance, not worse than 20 %

Interface RS-485

Data transfer protocol ModBus RTU

Cooling Air

Overall dimensions, (length x width x height) 5U 485 x 485 x 221 mm

Weight, not more 20 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
