GNSS board 4GNSS NP3I

Surveying Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

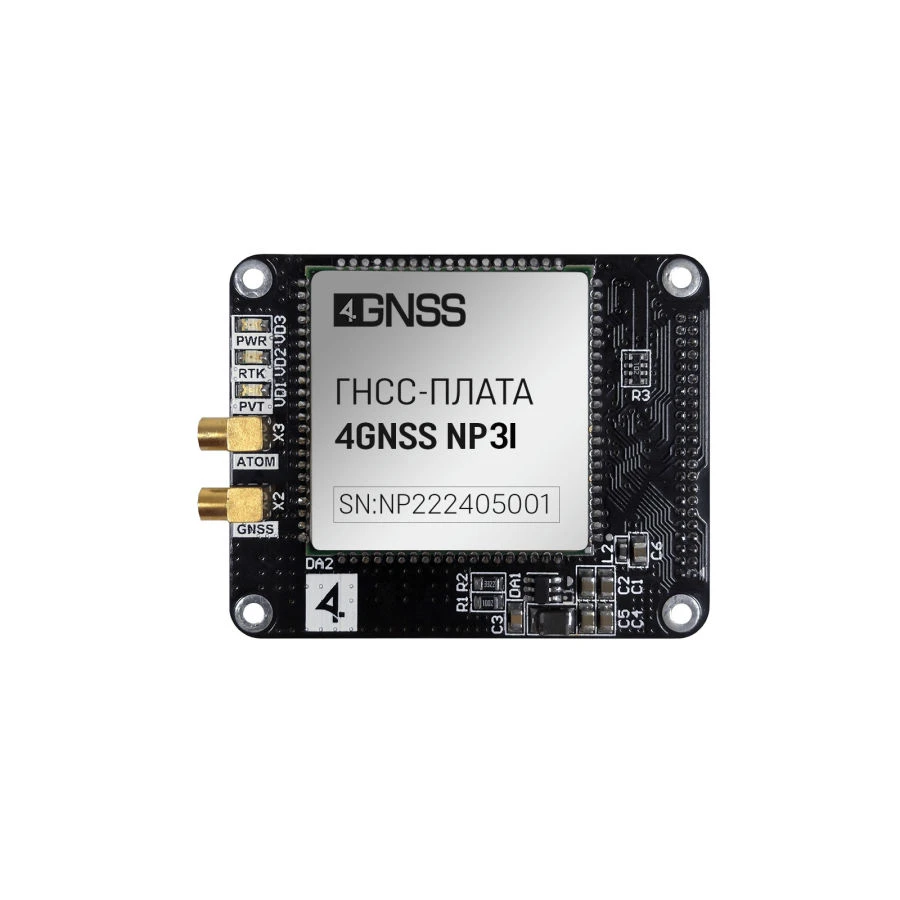

4GNSS NP3I is a geodetic receiver of GNSS satellite signals in the form of a board for integration with IMU . Capable of generating RTK corrections as well as receiving RTK and SSR corrections. Receives signals from GLONASS, GPS, BeiDou, Galileo satellite systems. Available in three typical sizes: 1). 40x50 mm 2). 41x71 mm 3). 60x100 mm. It is used for high precision positioning and navigation applications.

Specifications

Weight

14 g

Number of channels

965 pc

Satellite signal reception

- GPS: L1 C/A, L2C, L2P, L5 - BeiDou: B1I, B2I, B3I, B1C, B2a, B2b - GLONASS: L1 C/A, L1P, L2 C/A, L2P, L3** - Galileo: E1, E5a, E5b, E6**, E5 AltBoc** - SBAS: WAAS, EGNOS, MSAS, GAGAN, SDCM
