4GNSS receiver 4GNSS DEKART

Surveying Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

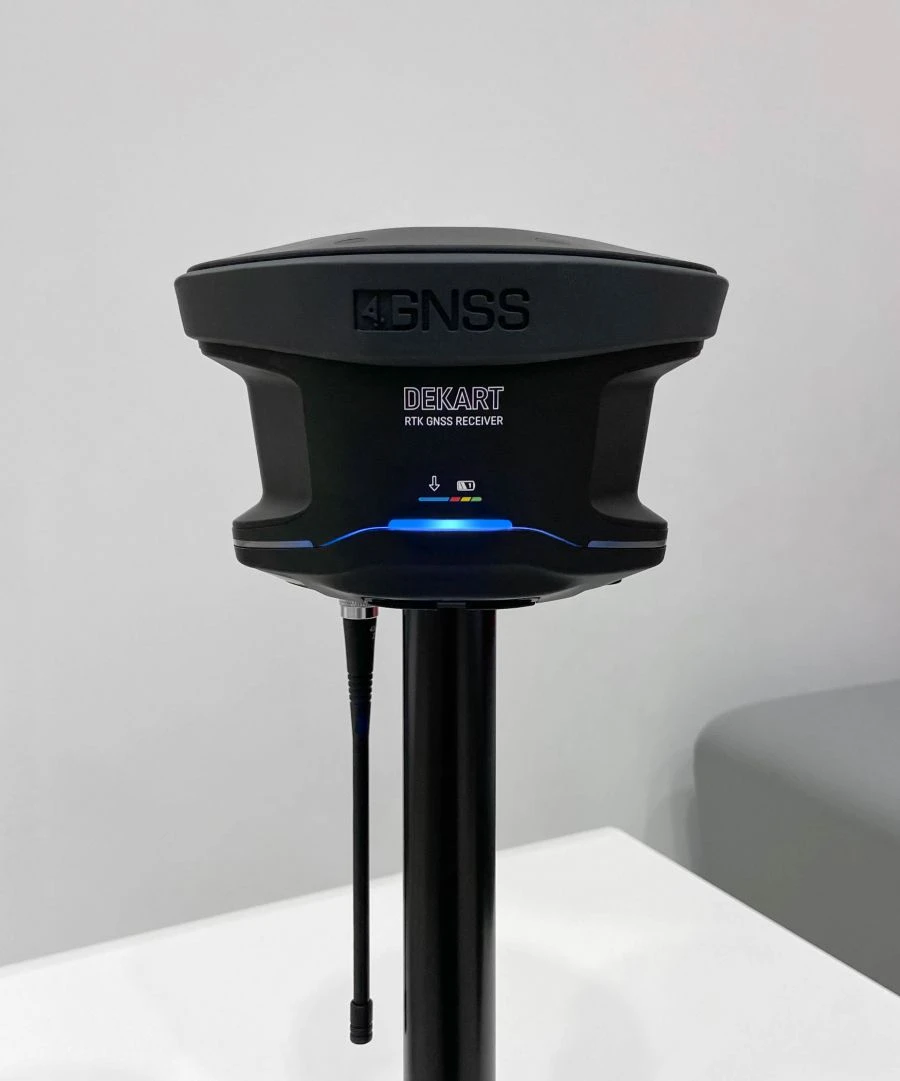

4GNSS DEKART is a geodetic satellite navigation receiver. It allows you to determine the coordinates of a point on the ground with centimetre accuracy in RTK (Real Time Kinematic) mode. It is used in geodetic and cadastral works, construction support and surveying. Receives signals of GLONASS, GPS, Galileo, BeiDou satellite systems. Combines in a single housing GNSS module, GNSS antenna, VHF and GSM modems, batteries with "hot swap" function. The receiver is controlled, configured and operated using the proprietary Web Survey software

Specifications

Waves GLONASS: L1, L2; GPS: L1, L2, L5; Galileo: E1, E5a, E5b; BeiDou: B1, B2, B3; SBAS

Receivable frequencies GLONASS: L1, L2; GPS: L1, L2, L5; Galileo: E1, E5a, E5b; BeiDou: B1, B2, B3; SBAS

Permissible mean square error of base length measurements in "Real Time Kinematics (RTK)" mode in plan view 8 mm

Permissible mean square error of measurements of the base length in the "Real-time kinematics (RTK)" mode by height 15 mm

Permissible mean square error of base length measurements in "Static" mode, in plan view 2.5 mm

Permissible mean square error of measurements of the base length in the "Static" mode, by height 5 mm

Operating temperature range -40 to +70 °C

Weight 1250 g

Overall dimensions 174x174x112 mm

Type Satellite receiver

Number of channels 960

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
