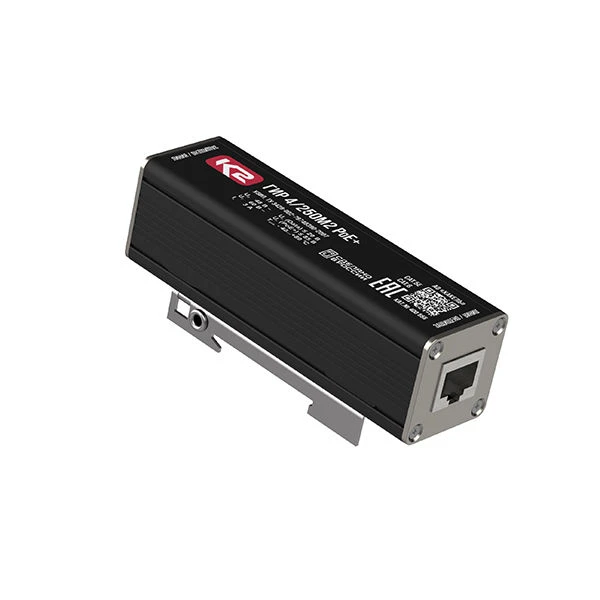

GIR 4/250M2 PoE+ surge protection device, Cat.No.400 555.

USIP GIR 4/250M2 PoE+, TU 3428-002-79740390-2007 are designed for protection against impulse overvoltages (lightning protection, protection against electrostatic discharges, etc.) of LAN equipment of categories 5e/6 with Ethernet interfaces of 1000BASE-T, 10GBASE-T standards within 0B - 2 lightning protection zones in accordance with GOST R IEC 62305-1. They are produced for nominal operating voltage UO = 6 V DC, IL = 3 A. The devices support the technology of power over data transmission (48 V - PoE+, PoE++). Capable of passing rated discharge current In (8/20)=1 kA, ITotal (10/350)=1 kA. Data transfer rate 1/10 Gbit/s. Made in a metal case with a metal lock for installation on a 35 mm DIN-rail. On the side of the line and the protected equipment installed RJ45 connectors (1 port).
