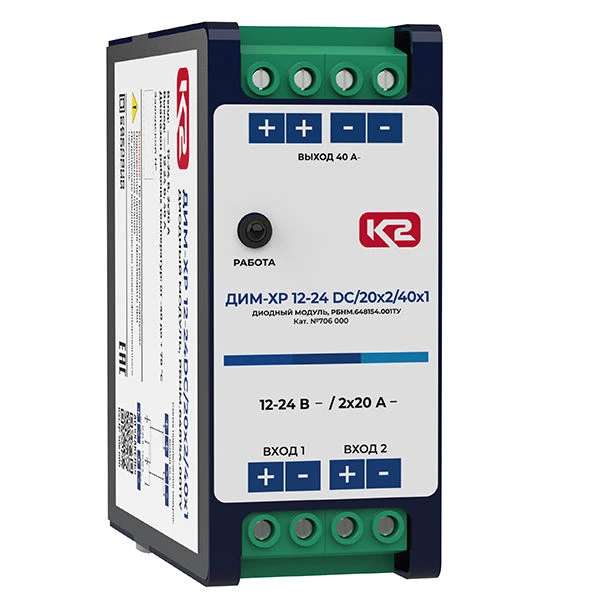

Diode module DIM-XR 12-24DC/20x2/40x1, cat.?706 000.

Diode module DIM-XR 12-24DC/20x2/40x1, RBNM.648154.001TU is designed to decouple two redundant power supplies operating on a common load. DIM-XR 12-24DC/20x2/40x1 is used in DC circuits with nominal voltage from 12 to 24 V. The device is a diode assembly, switched on according to the scheme "or" with a common cathode, and is mounted on a DIN rail. The redundant power supplies are isolated by the positive supply pole. The negative supply pole is directly transmitted to the device output. The input and output circuits of the module are equipped with surge protection. On the front panel of the module there is an LED indication of the presence of output voltage.
