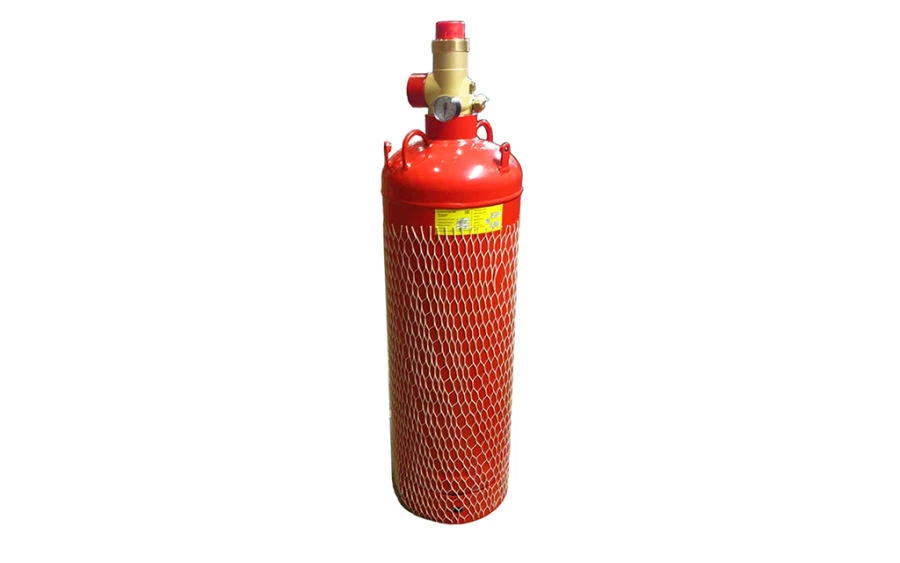

Gas fire extinguishing modules MPA-KD (50-XX-33)

Mechanical Spraying Equipment

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Modules of gas fire extinguishing MPA-KD (50-XX-33) for working pressure of 5,0 MPa are manufactured according to technical conditions TU 28.29.22-009-09214033-2018 revision 2. The modules use: Brandsys 0421 (DN 33 mm) with electromagnetic, pneumatic and/or manual starting methods with cylinders with capacity from 6 litres to 150 litres: MPA-KD (50-6-33); MPA-KD (50-8-33); MPA-KD (50-10-33); MPA-KD (50-16-33); MPA-KD (50-20-33); MPA-KD (50-25-33); MPA-KD (50-28-33); MPA-KD (50-32-33); MPA-CD (50-51-33); MPA-CD (50-52-33); MPA-CD (50-81-33); MPA-CD (50-106-33); MPA-CD (50-142-33); MPA-CD (50-147-33); MPA-CD (50-150-33). Modules correspond to climatic execution UHL, placement category 4 according to GOST 15150-69, in the temperature range from minus 20 C to plus 50 ?. Modules meet the requirements for seismic resistance, strength and resistance to external influencing factors. Modules are certified for use with GOTV Brandsis 1230 (FK-5-1-12), Chladon 227.

Technical Specifications

Minimum pressure in the module at which it remains operable	1 MPa
Test pressure	7.5 MPa
LPS actuation pressure range	6.37...7.35 MPa
The mass of GOTV that remains in the module after its actuation, not more than	0.3 kg
Equivalent length of the module, not more	3.7 m
Module pneumatic start pressure (minimum/maximum)	0.8...6.4 MPa
Diameter of the nominal bore of the plug-in module/siphon tube	33 mm
Operating pressure (maximum at +50C) of the module	5 MPa
Mechanical (manual) start-up force of the module on the safety lock (hand force on the handle), not more than	150

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
