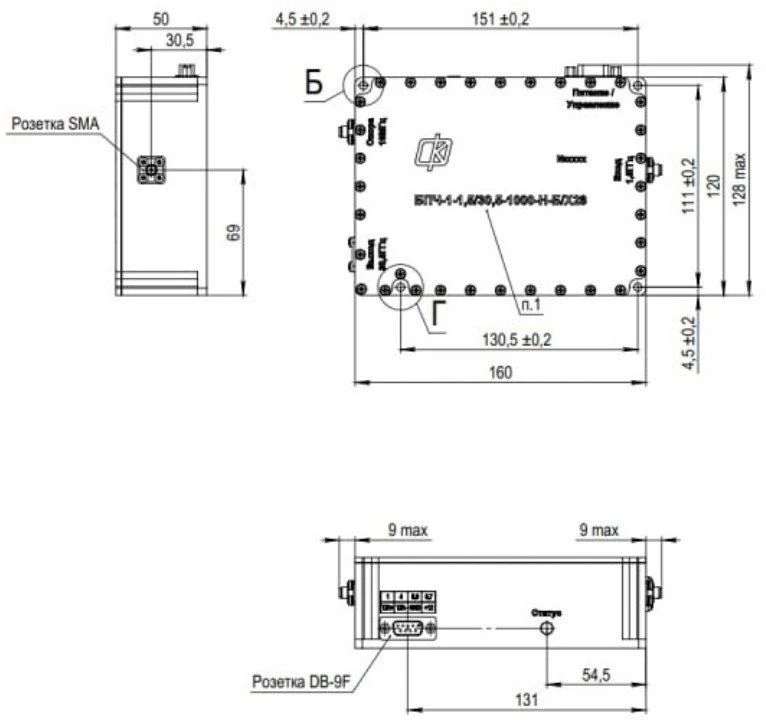

Frequency transfer unit BHR-1-1,5/30,5-1000-N-B/X28

Telecom Equipment Accessories

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

The device is designed to transfer the frequency spectrum from L band to Ka band, with through signal amplification of 20 dB. The filter at the output provides filtering of the conversion products, sum and difference of the received harmonics, suppression of the mirror channel. The bandwidth is 1000 MHz.

Specifications

Input frequency range 1000...2000

Output frequency range 30000...31000

Transmission coefficient (at least) 20

Frequency response irregularity (max.) 2

Noise figure (max.) 16

1dB compression point output power (OP1dB, at least) 0.01 W

Heterodyne frequency attenuation (dBn, not less) 60

Mirror channel suppression (dBn, not less) 60

Frequency of the external reference oscillator 10

Internal reference oscillator Armoured glass

Power supply voltage B1/B8 2100/900 MHz V

Power consumption (max.) 8 W

Remote monitoring and control Got it

Weight (max.) 1600 g

List of controlled parameters The list of monitored parameters is the same for all of them: 1)Status (faulty/faulty), 2) PLL capture (there is capture/not), 3)Internal block temperature (C), 4) Current consumption current (A).

Input VSWR (max.) 1.5

Output VSWR (max.) 2

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
