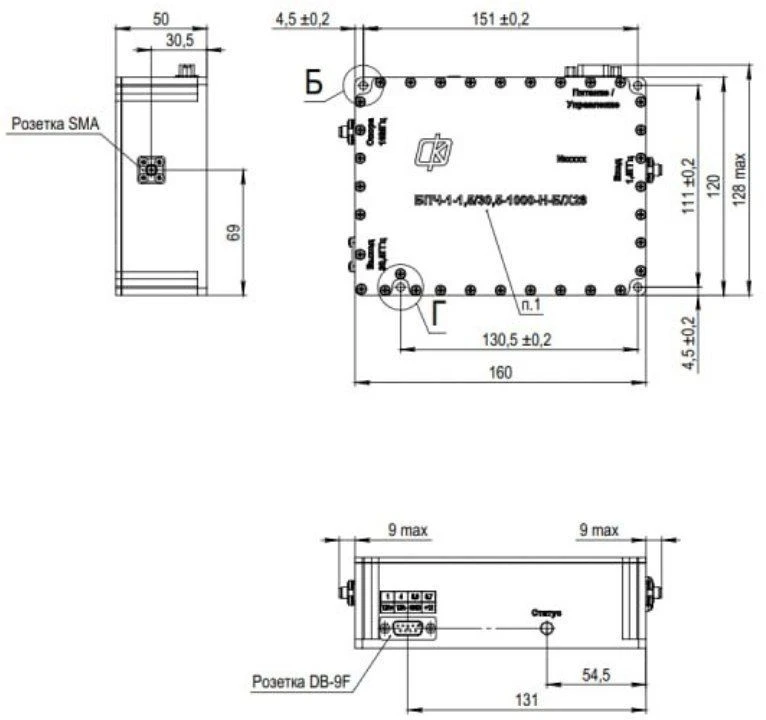

Frequency Transfer Block BPC-1-1.5/30.5-1000-N-B/X28 for Signal Amplification
Manufacturer:
FLIX LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
The device is designed to transfer the frequency spectrum from L band to Ka band, with through signal amplification of 20 dB. The filter at the output provides filtering of the conversion products, sum and difference of the received harmonics, suppression of the mirror channel. The bandwidth is 1000 MHz.
Specifications
Input frequency range
1000...2000
Output frequency range
30000...31000
Transmission coefficient (at least)
20
Frequency response irregularity (max.)
2
Noise figure (max.)
16
1dB compression point output power (OP1dB, at least)
0.01 W
Heterodyne frequency attenuation (dBn, not less)
60
Mirror channel suppression (dBn, not less)
60
Frequency of the external reference oscillator
10
Internal reference oscillator
Armoured glass
Power supply voltage
B1/B8 2100/900 MHz V
Power consumption (max.)
8 W
Remote monitoring and control
Got it
Weight (max.)
1600 year
List of controlled parameters
The list of monitored parameters is the same for all of them: 1)Status (faulty/faulty), 2) PLL capture (there is capture/not), 3)Internal block temperature (C), 4) Current consumption current (A).
Input VSWR (max.)
1.5
Output VSWR (max.)
2
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
