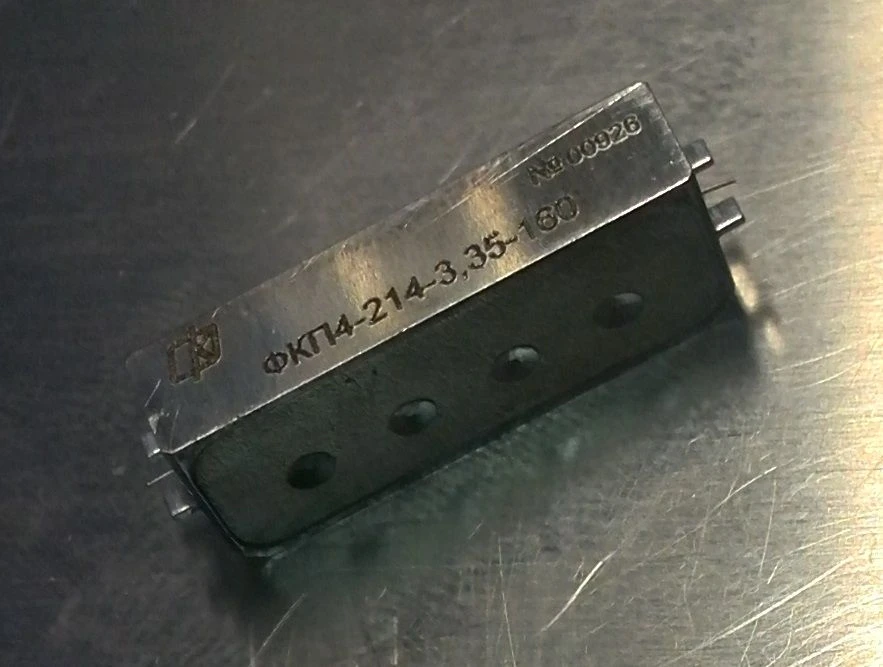

RF Bandpass Filter FKP4-214-3.35-160 for Enhanced Signal Quality

Telecom Equipment Accessories

Manufacturer: FLIX LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The band-pass filter of the 4th order is made on the basis of a ceramic monoblock inside the case - screen, which provides a low level of losses, high reliability and goodness at simultaneous minimisation of mass-dimensional parameters of the product. The product is designed for operation in the UHF range and provides a bandwidth of 160 MHz relative to the centre frequency of 3350 MHz.

Specifications

Maximum input and output VSWR in the frequency band 3280 to 3415 MHz

1.4

Guaranteed attenuation (upper band 3700 to 4000 MHz)

SBVVBG

Guaranteed attenuation (lower band 10 to 3050 MHz)

Maximum insertion attenuation at center frequency

1.2

30 dB level bandwidth

380...410

Bandwidth at 1 dB level

155...169

Center frequency

3349
