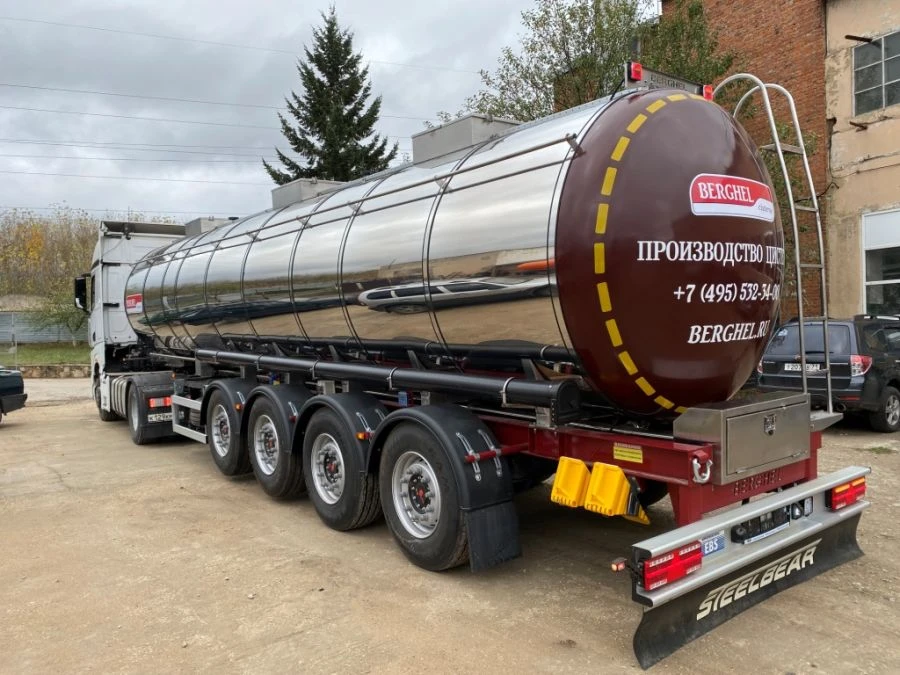

Four-axle tank semi-trailer, load-bearing construction, commercial name BERGHEL 9116P4, type 9116P4, swept bogie sh

Semi-trailer food tank. Volume 40 000l. Number of sections 1-4. The system of washing chambers. Inner flask material stainless steel AISI-304. The material of an external case stainless steel AISI-304 "mirror" Four bottom valves Du 80, (product cut-off inside the tank).1-4 filler necks, with breathing valves. Environmental boxes "square". One discharge pipe Du 80 (with an additional disc gate at the outlet), led into a sealed compartment located at the rear of the tank. Thermal insulation ISOVER foiled, thickness -100mm. (in accordance with GOST-9218-86 "Provides a change in temperature of the product 2C for 10 hours at a temperature difference between the product and ambient air in 30C). Compartment flushing system.
